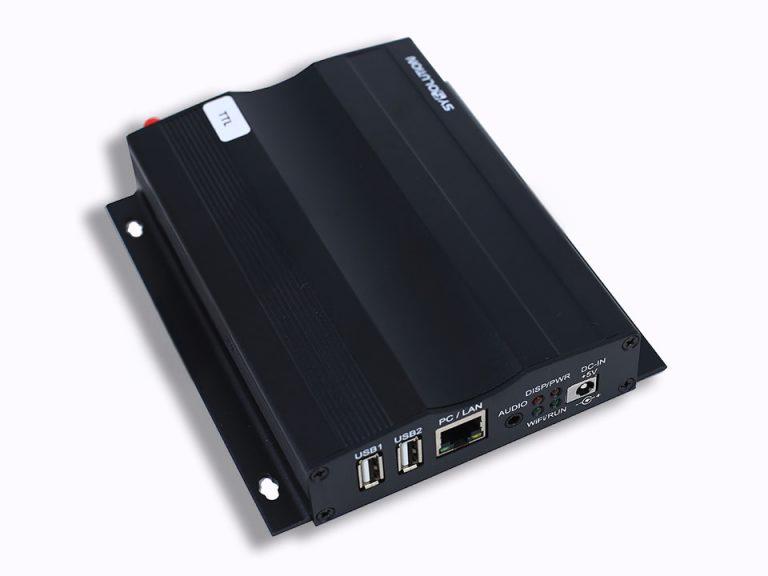

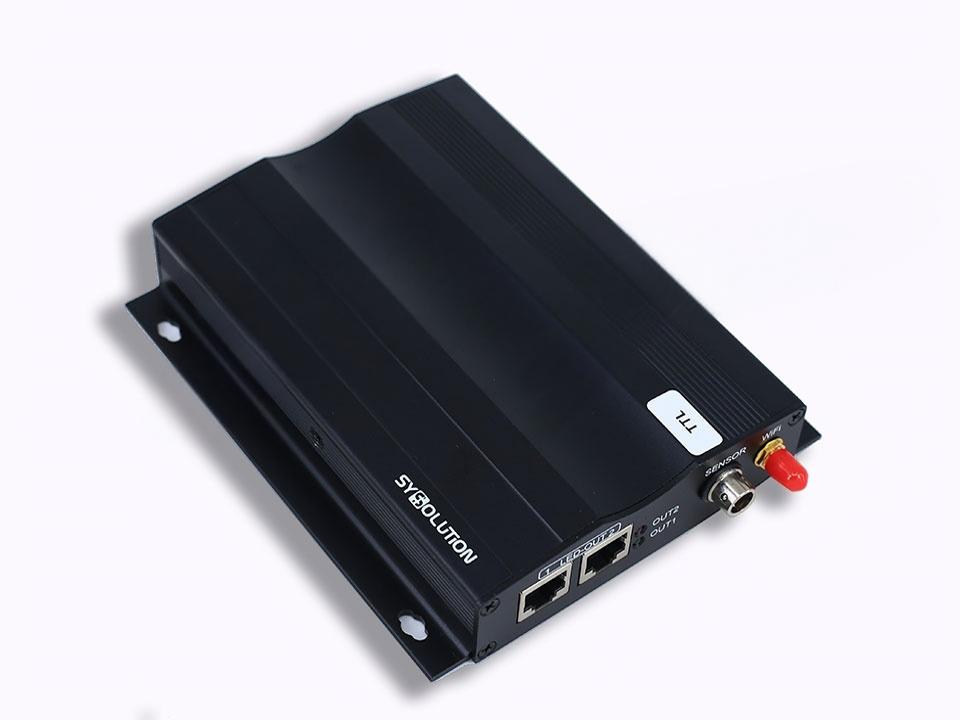

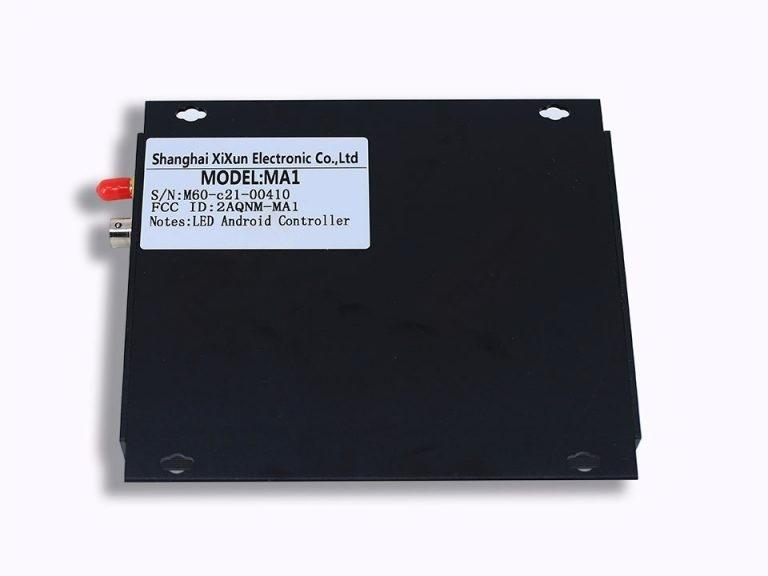

Xixun MA1 Wireless LED Control Card

Technical Specifications

• Operating Voltage: 4.5–5.5V
• Max Operating Current: 2A
• Max Power Consumption: 10W
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +70°C (recommended: 5°C–35°C)
• Operating Humidity: 10%–90%
• Dimensions: 145.9 cm (L) × 129 cm (W) × 29.7 cm (H)
• Weight: 400g

Key Features

Wireless & Network Control

1. Onboard Wi-Fi module for wireless communication (AP/Station modes).
2. Supports router-like wireless configuration without cabling.
3. Compatible with mobile control (iOS/Android) and cross-platform web access (PC, tablets).
4. Enables secondary development and cloud platform integration.

Video & Display Performance
5. Hardware video decoding with 1080P support.
6. Plays mainstream video, image formats, and editable text.
7. Dual-port pixel capacity: 1920×1080.
8. Full-color display up to 32 scans.
9. High refresh rate, brightness, and gravel level.

Hardware & Compatibility
10. Supports chips: Macroblock (MBI), Chipone (ICN), Sumatra (SUM), MY-semi (MY).
11. 8GB industrial-grade onboard flash storage.
12. USB camera compatibility.
13. Works with multifunction cards (R30E/R50) for 5-way relay switching (power, sensors, etc.).
14. Parameter storage on receiving cards (compatible with 9th-gen models).

Software & Control
15. Bundled software: Easy-Board for intuitive setup and management.

Applications

• Wireless LED displays in events, retail, and industrial environments.
• IoT-integrated systems requiring temperature/humidity/brightness monitoring.
• Mobile-controlled installations for digital signage or interactive displays.
