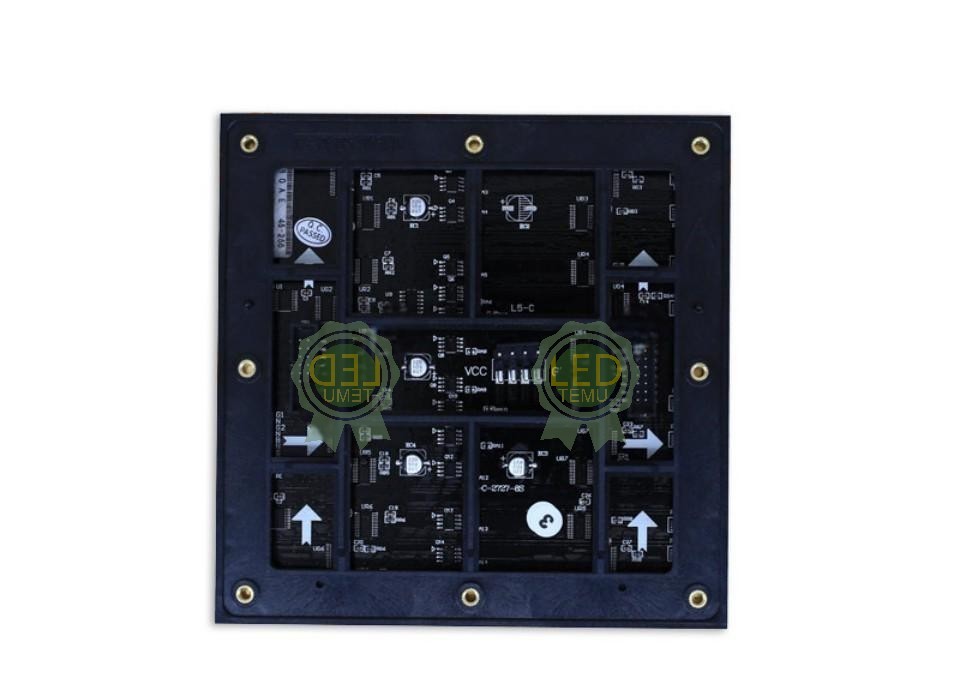

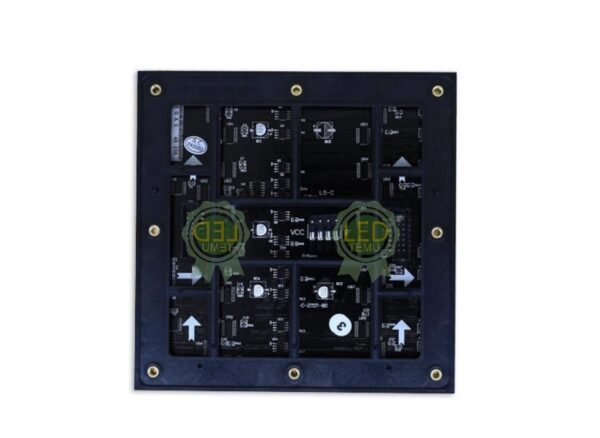

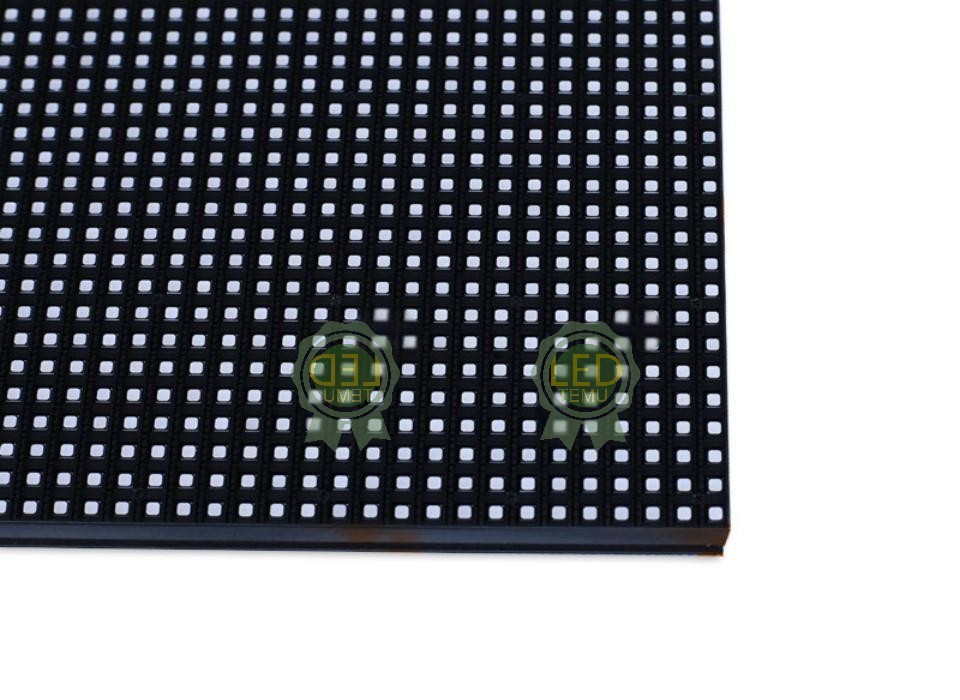

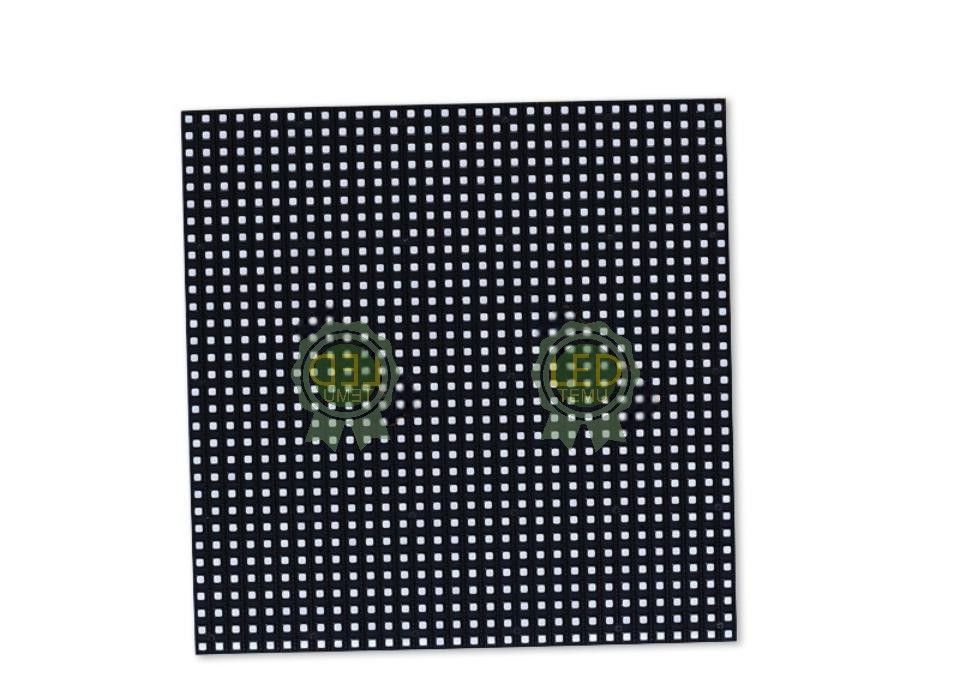

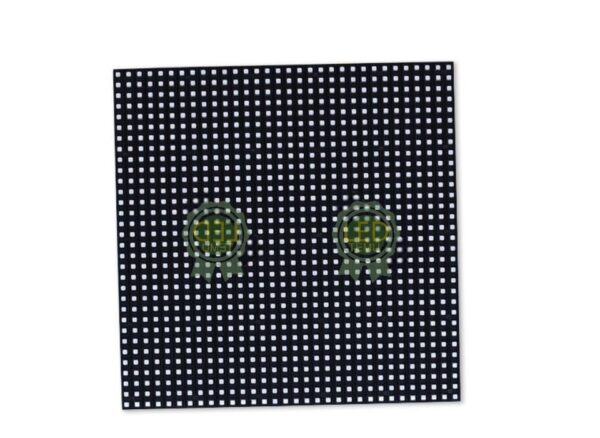

P5 Outdoor SMD LED Module

Key Features:

• Pixel Pitch: 5mm, providing a good balance between resolution and viewing distance.

• Module Size: 160 x 160 mm, designed for easy integration into outdoor displays.

• Module Resolution: 32 x 32 pixels, offering clear and detailed visuals.

• Lattice Density: 40,000 dots/square meter, ensuring high pixel density for sharp images.

• Pixel Type: 1R1G1B SMD 2727 (Nationstar), delivering vibrant colors and excellent brightness.

• Best Viewing Distance: 4m to 30m, suitable for various outdoor display applications.

• Max Power Consumption: 950W/square meter, delivering high brightness and visibility.

• Average Power Consumption: 500W/square meter, ensuring energy efficiency.

• Max Power per Module: 25W, providing efficient power use for the module.

• Warranty: 1-year warranty, offering peace of mind and support.

• Drive Mode (Optional): Constant current 1/8 scan, ensuring stable performance.

• Control System: Compatible with DVI card and full-color control card for versatile control options.

• Pixel Type: Real pixel, offering true-to-life resolution for sharp images.

• Refresh Frequency: ≥1920Hz for smooth, flicker-free content display.

• Horizontal View Angle: >110°, ensuring wide viewing angles for diverse viewing positions.

• Working Environment:

  • Temperature Range: -20°C to +60°C, ensuring reliable operation in extreme weather conditions.

  • Humidity Range: 10% to 90%, allowing for flexible installation in various climates.

• Working Voltage: DC 5V, providing stable and efficient power for the modules.

• Lifetime: ≥100,000 hours, offering a long-lasting, durable solution.

• Gray Scale: 12-bit per color, supporting smooth color transitions and high-quality images.

• Color Display: Manual adjustment for precise color control.

• Brightness: 6500 cd/square meter, ensuring high brightness for outdoor visibility.

• Blind Spot Rate: <0.00001, minimizing dead pixels for optimal performance.

• Front Waterproof Class: IP66, providing excellent protection against water and dust for outdoor use.

• Software: Compatible with Windows series systems for easy configuration and management.

Important Notes:

For optimal performance, we recommend purchasing all modules for a single LED screen from the same batch. This ensures uniformity in RGB rank, color, frame, brightness, and other key characteristics. Modules from different batches may exhibit slight variations.

If you have any special requirements, please contact our online sales team for personalized assistance.
