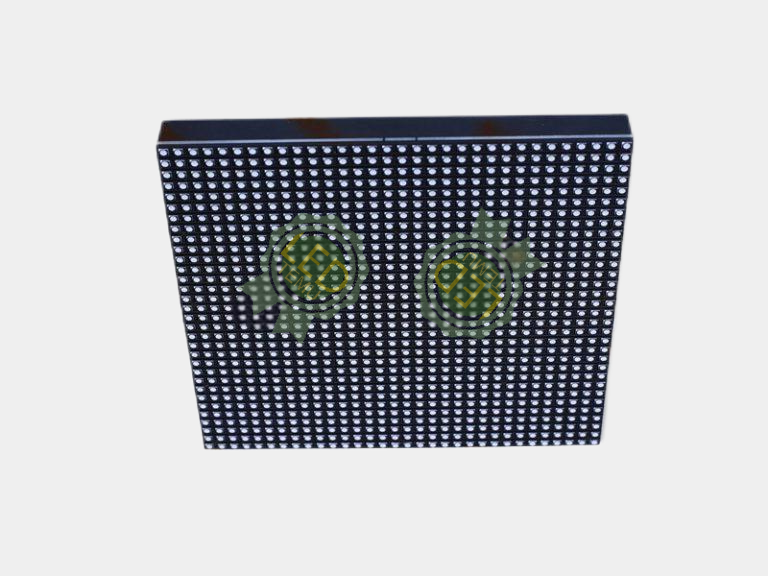

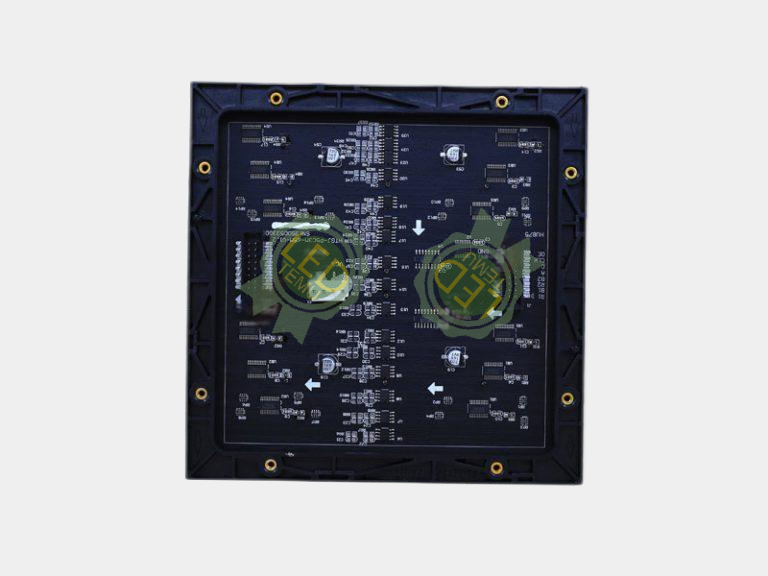

P5 Indoor SMD LED Unit Board Specifications
Technical Parameters
| Category | Specifications | |||
|---|---|---|---|---|
| Display Performance | Pixel Pitch: 5.0 mm | Brightness: >1600 cd/m² | Refresh Rate: ≥400 Hz | Gray Scale: 12-bit/color (4,096 levels) |
| Physical Design | Module Size: 160×160 mm | Pixel Configuration: 32×32 (1R1G1B SMD3528) | Viewing Angle: >110° | Blind Spot Rate: <0.00001 |
| Power Efficiency | Input Voltage: DC 5V | Max Power/Module: 15.5W | Avg Consumption: 350W/m² | Peak Consumption: 600W/m² |
| Environmental | Operating Temp: -20°C to +60°C | Humidity: 10%-90% | Waterproof Rating: IP43 | Lifetime: ≥100,000 hours |
| Control & Integration | Drive Mode: Constant Current 1/16 Scan | Control System: DVI + Full-Color Card | Software: Windows OS Support | |
| Viewing & Applications | Best Viewing Distance: 3-20 m | Pixel Type: Real Pixel | Color Adjustment: Manual Calibration |
Key Features
✅ Ultra-High Brightness
- 1600 cd/m² for exceptional visibility in bright indoor environments (e.g., lobbies, retail spaces).
✅ Precision SMD3528 LEDs - 40,000 dots/m² density optimized for mid-range clarity and energy-efficient performance.
✅ Industrial Reliability - Stable operation in extreme temperatures (-20°C to +60°C) with 100,000-hour lifespan.
✅ Smooth Motion & Color Accuracy - 400Hz refresh rate and 12-bit grayscale for flicker-free dynamic content and seamless color transitions.
Critical Notes
⚠️ Batch Consistency Requirement
- Purchase all modules for a single screen in one batch to ensure uniformity in:
RGB calibration|Brightness|Frame alignment - Modules are incompatible with units from other production batches.
Support & Warranty
- Warranty: 1 Year | Custom Solutions: Contact sales for IP upgrades, custom layouts, or bulk pricing.
Specifications subject to technical updates. Refer to the official manual for installation guidelines.
Why Choose This Unit Board?
🔹 Mid-Range Clarity: Ideal for 3-20m viewing in auditoriums, transportation hubs, and digital billboards.
🔹 Energy Efficiency: Low power consumption (15.5W/module) with 1/16 scan technology.
🔹 Flexible Integration: Manual color calibration and Windows compatibility for seamless control.
For orders or technical support, contact our online sales team.
Applications: Digital signage, live event displays, retail environments, and public information boards.
