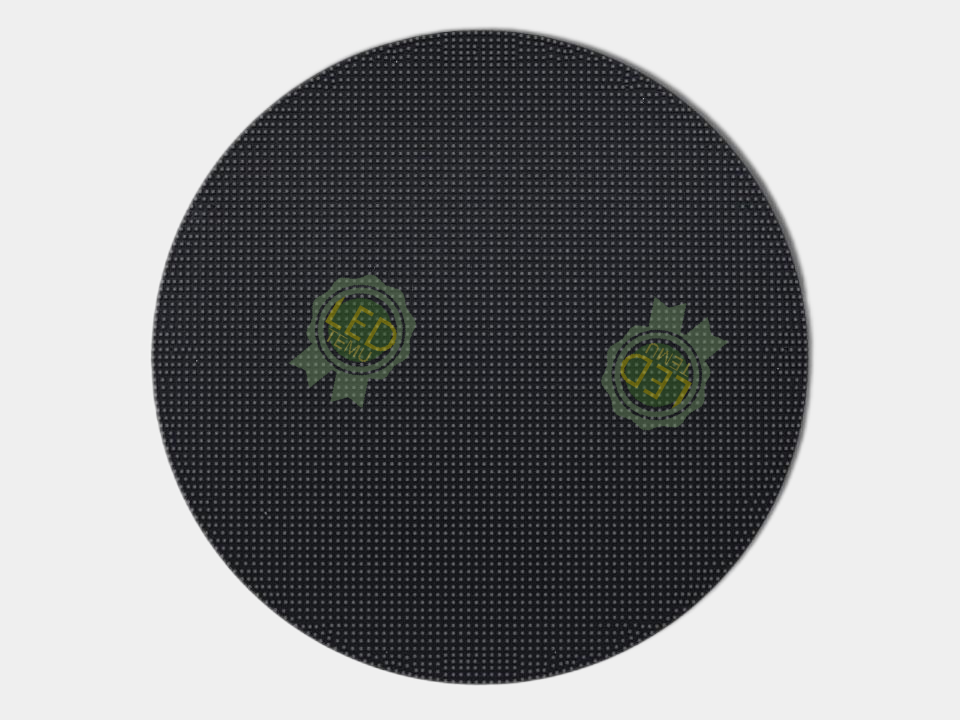

P3 LED Disc Display Module Specifications
Technical Parameters
| Category | Specifications | ||||
|---|---|---|---|---|---|
| Display Performance | Pixel Pitch: 3.0 mm | Brightness: >800 cd/m² | Refresh Rate: 3840 Hz | Gray Scale: 12-bit/color (4,096 levels) | |
| Physical Design | Module Shape: Circular | Diameter: 260 mm | Pixel Configuration: 87×44 (1R1G1B SMD2121) | Viewing Angle: >110° | Blind Spot Rate: <0.00001 |
| Power & Efficiency | Input Voltage: DC 5V | Max Power: 50W | Module Area: 0.053 m² | Driver IC: 2037 | |
| Environmental | Operating Temp: -20°C to +60°C | Humidity: 10%-90% | Waterproof Rating: IP43 | Lifetime: ≥100,000 hours | |
| Control & Integration | Drive Mode: Constant Current 1/22 Scan | Control Card: MC75E (Not Included) | Software: Windows OS Support | ||
| Viewing & Applications | Best Viewing Distance: 1.5-100 m | Pixel Type: Real Pixel | Color Adjustment: Manual Calibration |
Key Features
✅ Ultra-High Refresh Rate
- 3840Hz eliminates flicker for ultra-smooth motion in live events and dynamic visuals.
✅ Circular Disc Design - Unique 260mm diameter format for creative installations (e.g., digital signage, stage backdrops).
✅ Precision SMD2121 LEDs - 111,111 dots/m² density with 3.0mm pitch for clear mid-to-long-range viewing.
✅ Industrial Reliability - Stable operation in extreme environments (-20°C to +60°C) and 100,000-hour lifespan.
Critical Notes
⚠️ Batch Consistency Requirement
- Purchase all modules for a single screen in one batch to ensure uniformity in:
RGB calibration|Brightness|Frame alignment - Modules are incompatible with units from other production batches.
Support & Warranty
- Warranty: 1 Year | Custom Solutions: Contact sales for control card integration, IP upgrades, or bulk orders.
Specifications subject to technical updates. Refer to the official manual for installation guidelines.
Why Choose This Module?
🔹 Creative Flexibility: Circular design adapts to artistic displays and unconventional layouts.
🔹 Energy Efficiency: Optimized power consumption (50W max) for cost-effective operation.
🔹 High Dynamic Range: Manual color calibration ensures precise visual output.
For orders or technical inquiries, contact our online sales team.
Designed for applications: Stage lighting, retail kiosks, public signage, and interactive installations.
