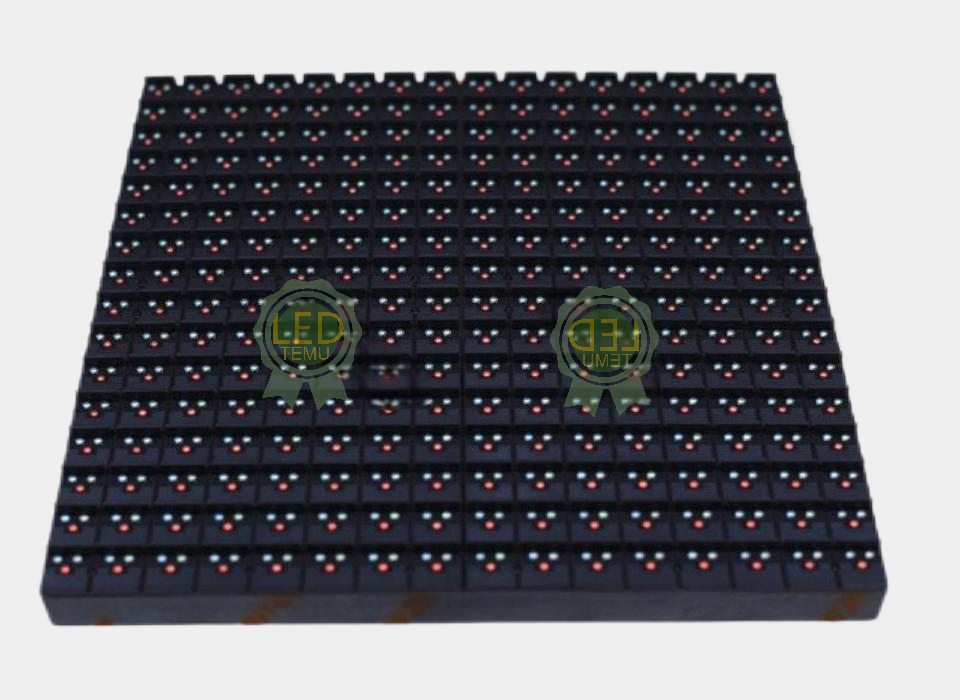

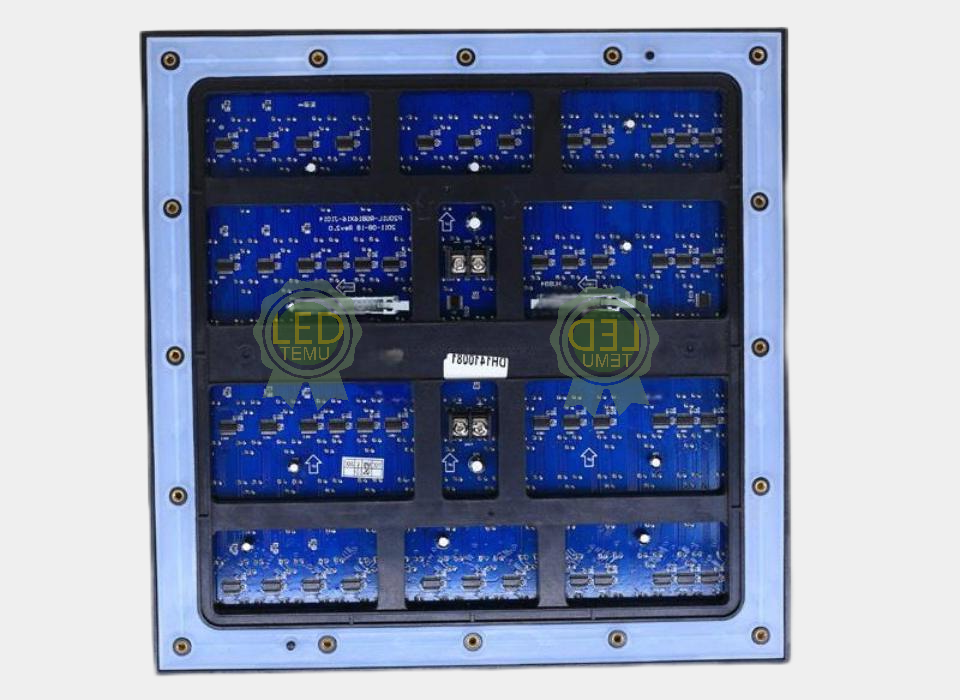

P20 Truecolor Outdoor LED Module

Key Features:

• LED Chip: EPISTAR for high-quality performance and reliability.

• Pixel Pitch: 20mm, suitable for outdoor applications with long-distance viewing.

• Brightness: 7500 nits, ensuring clear visibility even in bright outdoor environments.

• Driver Mode: 1/1 Duty Static, providing consistent performance.

• Weight: 2.0 kg per module, optimized for ease of installation and durability.

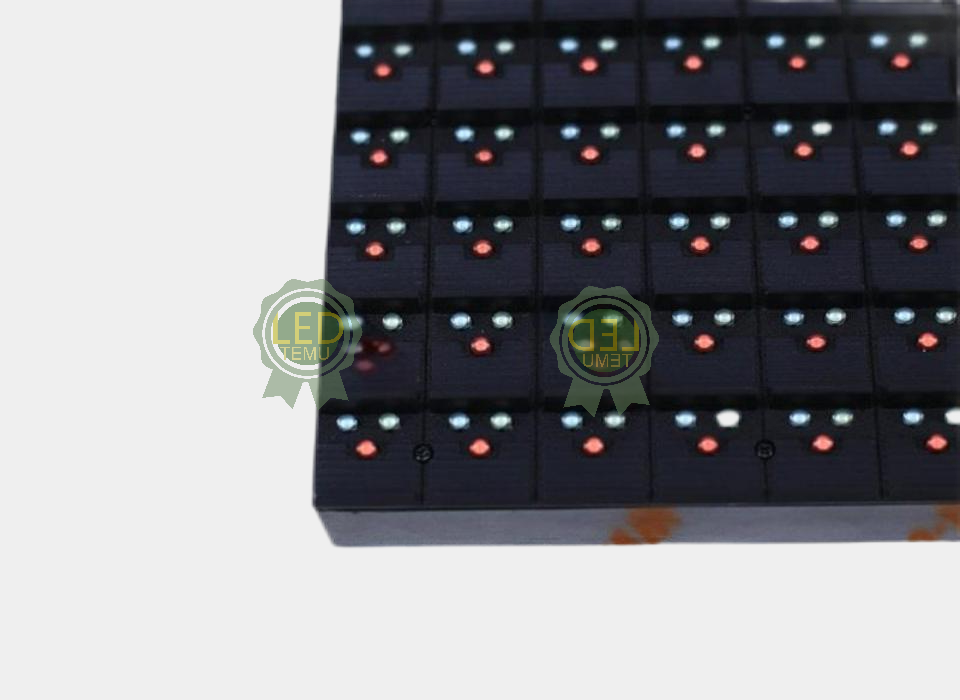

• Pixel Configuration: DIP 1R1G1B, offering vibrant colors and excellent visual performance.

• Module Dimensions: 320 x 320 mm (12.6 x 12.6 inches), providing a compact and efficient design.

• Pixel Density: 2500 pixels/sq.m., delivering a balance of resolution and brightness.

• Refresh Rate: ≥1680 Hz, ensuring smooth video playback without flicker.

• Gray Scale Per Color: 8192 levels, offering smooth color transitions and rich detail.

• Colors: 549.6 billion colors, delivering a full spectrum of true-to-life colors.

• Best Viewing Distance: 15m to 250m, ideal for outdoor signage and billboards.

• Viewing Angle: 120° horizontal and vertical, providing a wide range of visibility.

• IP Rating: IP65 front, IP54 rear, ensuring protection against dust and water, perfect for outdoor environments.

• Power Consumption:

  • Max Power Consumption: 600W/sq.m. for high brightness levels.

  • Average Power Consumption: 200W/sq.m., providing energy efficiency.

  • Max Power per Module: 62W, designed for high-performance output.

• Input Voltage: DC 5V, offering stable operation and efficiency.

• Operating Temperature: -20°C to +50°C, designed to work in extreme outdoor conditions.

• Operating Humidity: 10% to 90%, ensuring reliable performance in varying weather conditions.

• Source Compatibility: Supports AV, S-Video, VGA, DVI, HDMI, SDI, and DP, providing flexible integration options.

Important Notes:

To maintain consistency and optimal performance, it is recommended to purchase all modules for a single LED screen from the same batch. This ensures uniformity in RGB rank, color, frame, brightness, and other parameters. Modules from different batches may vary slightly in these characteristics.

If you have special requirements, please contact our online sales team for personalized assistance.
