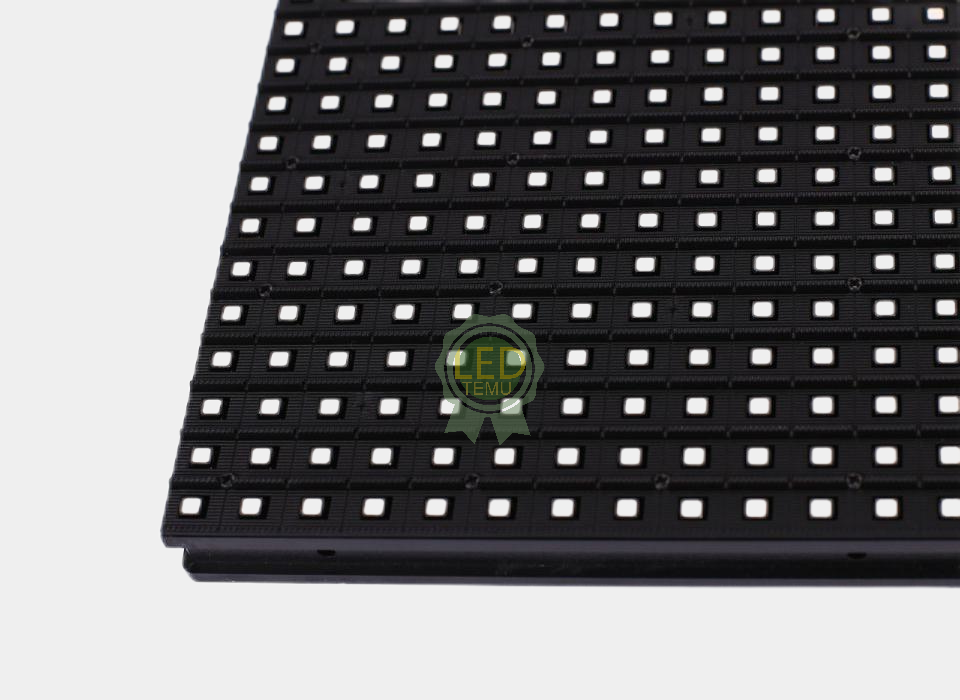

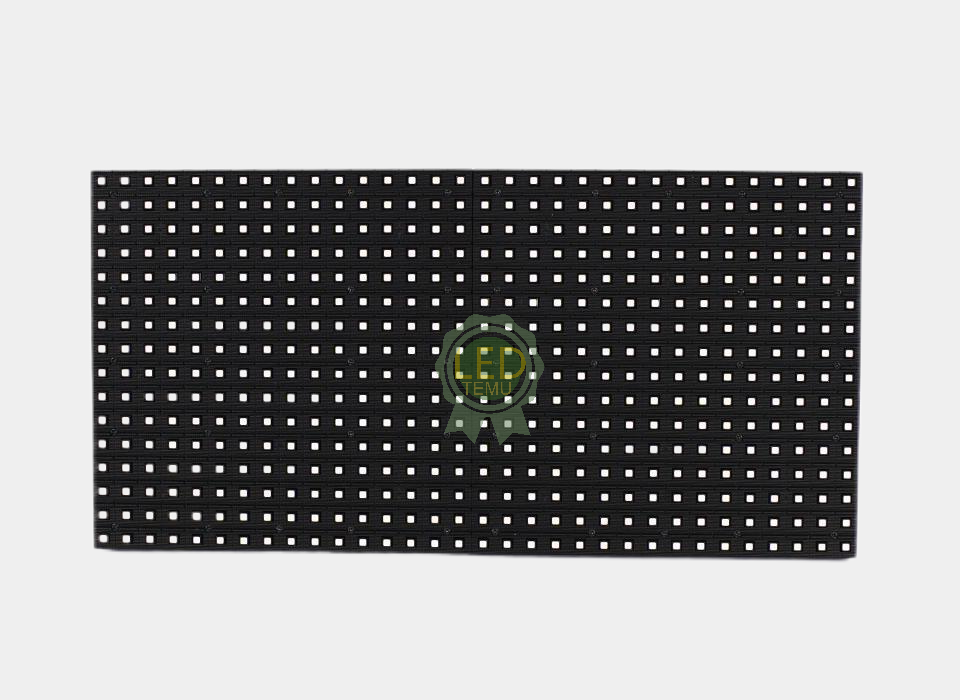

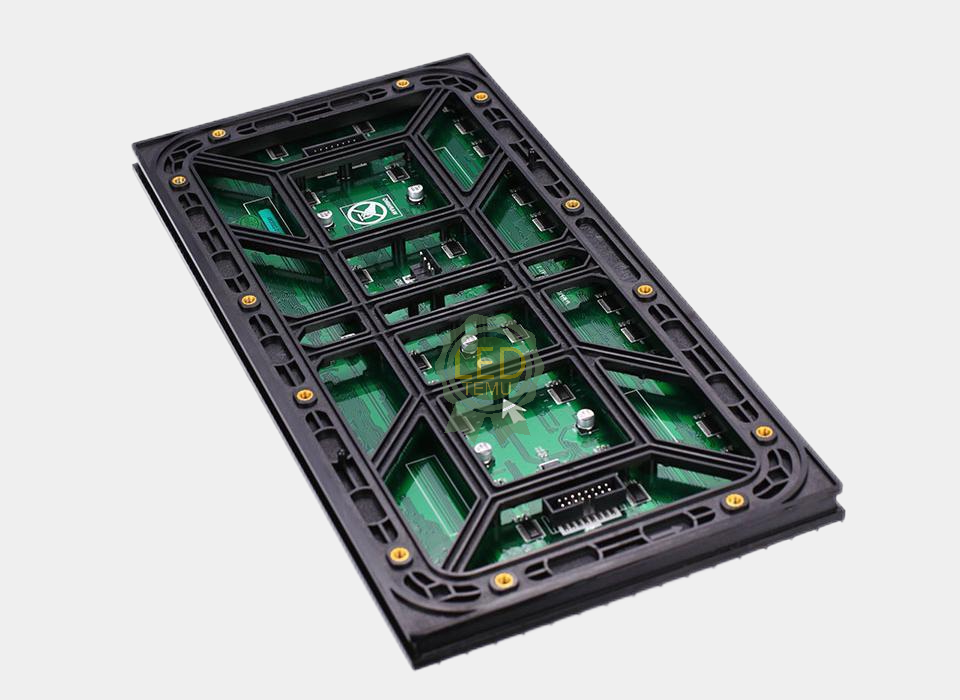

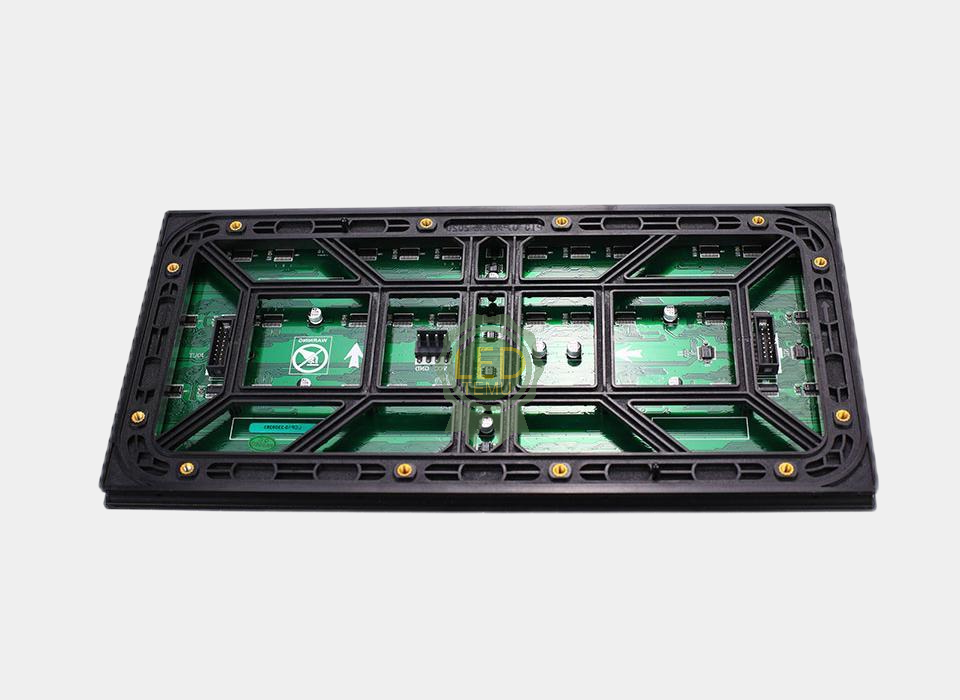

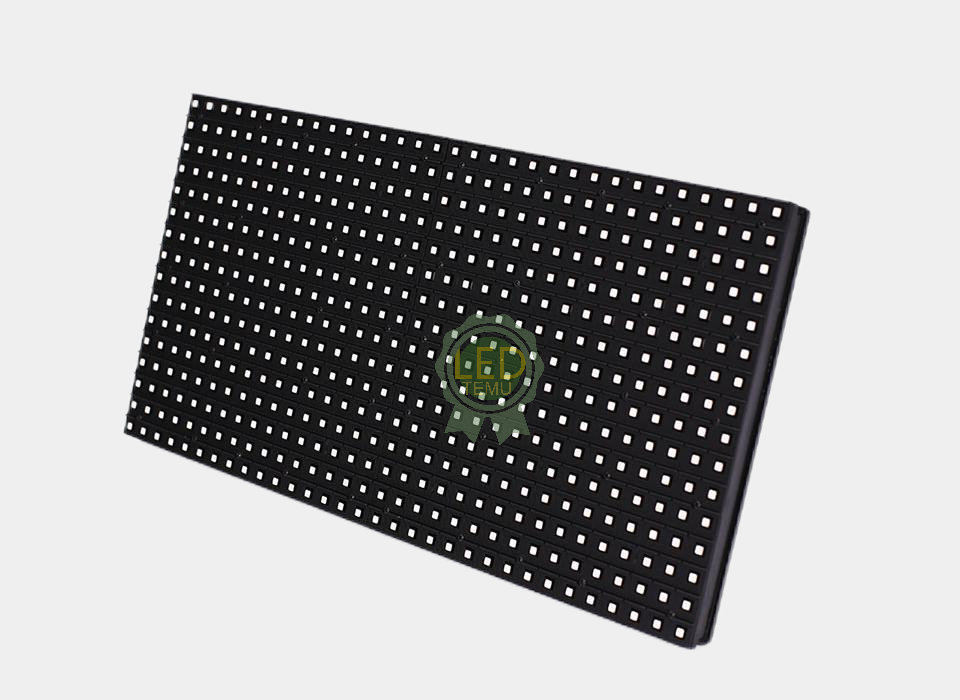

P10 Outdoor SMD LED Module

Key Features:

• Pixel Pitch: 10mm – ideal for outdoor LED display applications with excellent visibility.

• Module Size: 320 × 160 mm – compact and optimized for seamless installation.

• Model Pixel: 32 × 16 Pixels – ensuring sharp and clear image quality.

• Lattice Density: 10,000 dots/sq.m. – delivering high-resolution output.

• Pixel Configuration: 1R1G1B SMD (Nationstar) – providing vibrant and uniform color performance.

• Best Viewing Distance: 6m to 30m – suitable for various viewing ranges.

• Brightness: 6500 cd/sq.m. – ensuring clear display even in bright outdoor environments.

• Gray Scale: 12-bit per color – offering smooth color transitions and enhanced image depth.

• Refresh Frequency: ≥1920Hz – supporting high-quality video playback with minimal flicker.

• Viewing Angle: >110° (Horizontal) – providing a wide field of view for better audience engagement.

• Drive Mode: Constant current 1/2 scan – ensuring stable and efficient performance.

• Control System: DVI card + Full-color control card – supporting seamless content management.

• Power Consumption:

  • Max: 750W/sq.m.

  • Average: 300W/sq.m.

  • Max Power per Module: 38W

• Operating Conditions:

  • Temperature: -20°C to +60°C – designed to withstand harsh outdoor environments.

  • Humidity: 10% to 90% – ensuring reliability in various weather conditions.

• Power Supply: DC 5V – providing stable and efficient operation.

• Lifetime: ≥100,000 hours – ensuring long-lasting performance.

• Blind Spot Rate: <0.00001 – guaranteeing high display quality.

• Waterproof Rating: IP66 – offering superior protection against dust and water for outdoor use.

• Software Compatibility: Supports Windows operating systems – ensuring easy control and operation.

Important Notes:

For optimal performance, we recommend purchasing all modules for a single LED screen from the same batch. Variations in RGB rank, color, frame, and brightness may occur between different batches, which can affect uniformity. Modules from different batches may not be compatible with previous or future purchases.

If you have special requirements, please contact our online sales team for further assistance.
