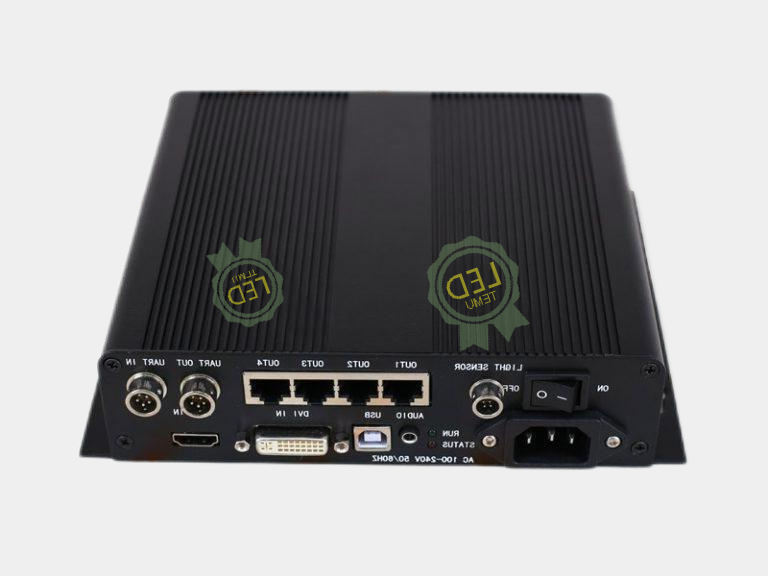

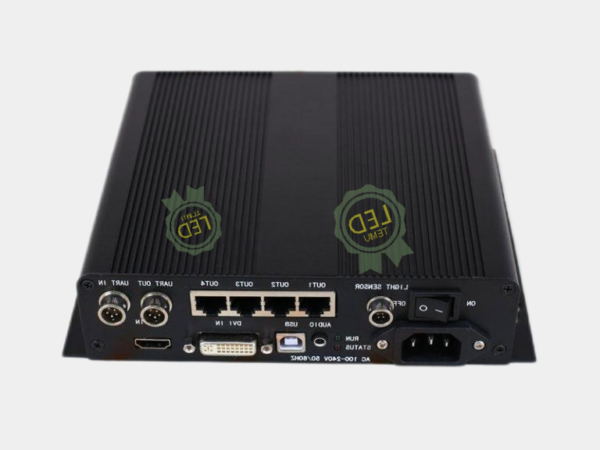

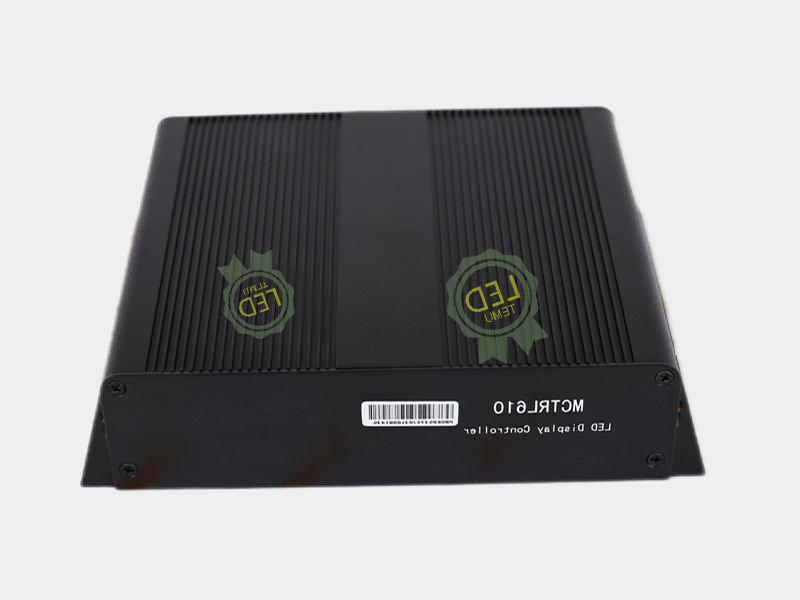

NovaStar MCTRL610 LED Display Controller

The NovaStar MCTRL610 is a professional-grade LED sending controller designed for high-performance LED display applications. With robust input options, high-resolution support, and advanced image processing capabilities, the MCTRL610 is ideal for demanding environments requiring reliable and precise visual performance.

Key Features:

🔌 Video Inputs:

• 1× HDMI input

• 1× DVI input

🔊 Audio Input:

• 1× HDMI or external audio input

🎥 Supported Video Formats:

• 12-bit / 10-bit / 8-bit HD video sources

• RGB, YCrCb 4:2:2, and YCrCb 4:4:4 formats

🖥 Supported Resolutions:

• 2048×1152

• 1920×1200

• 2560×960

• 1440×900 (only for 12-bit/10-bit input)

📤 Outputs:

• 4× Gigabit Ethernet ports

⚙️ Additional Features:

• 1× Light sensor interface for automatic brightness adjustment

• Supports cascading multiple controllers for large display setups

• 18-bit grayscale processing for improved image quality

Package Includes:

• 1× MCTRL610 sending controller

• 1× Power cable (AC 110–264V input)

• 1× DVI cable

• 1× USB cable

📝 Software and user manuals are available via download upon request.
