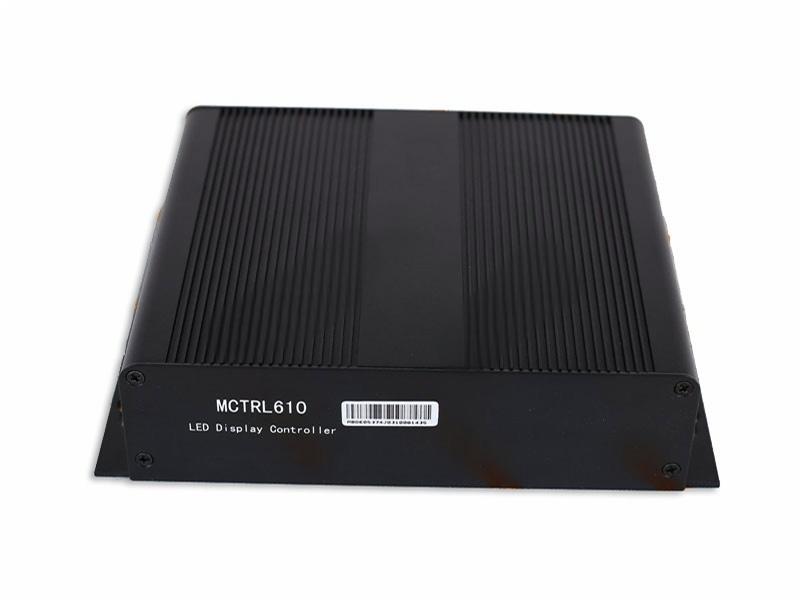

Novastar MCTRL610 LED Display Controller

The Novastar MCTRL610 LED Display Controller is designed for high-quality LED display applications, offering flexible video input, excellent video processing capabilities, and robust features for seamless performance.

Key Features:

1. Video Inputs: Supports HDMI and DVI inputs.
2. External Audio Input: Allows HDMI/external audio input.
3. High-Quality Video Processing: Supports 12bit/10bit/8bit HD video sources.
4. Resolution Support:
   • 2048×1152, 1920×1200, 2560×960.
   • 1440×900 (supports 12bit/10bit).
5. Light Sensor Interface: Includes 1 light sensor interface for brightness adjustment.
6. Cascading Support: Allows for cascading with multiple controllers.
7. Gray Scale Processing: 18bit gray scale processing and presentation for smooth and detailed visuals.
8. Video Formats Supported: RGB, YCrCb4:2:2, YCrCb4:4:4.

What’s Included:

• 1 x MCTRL610 sending box
• 1 x Power cable (110-264 VAC input)
• 1 x DVI cable
• 1 x USB cable
• Software CD & Manual (available for download upon request)
