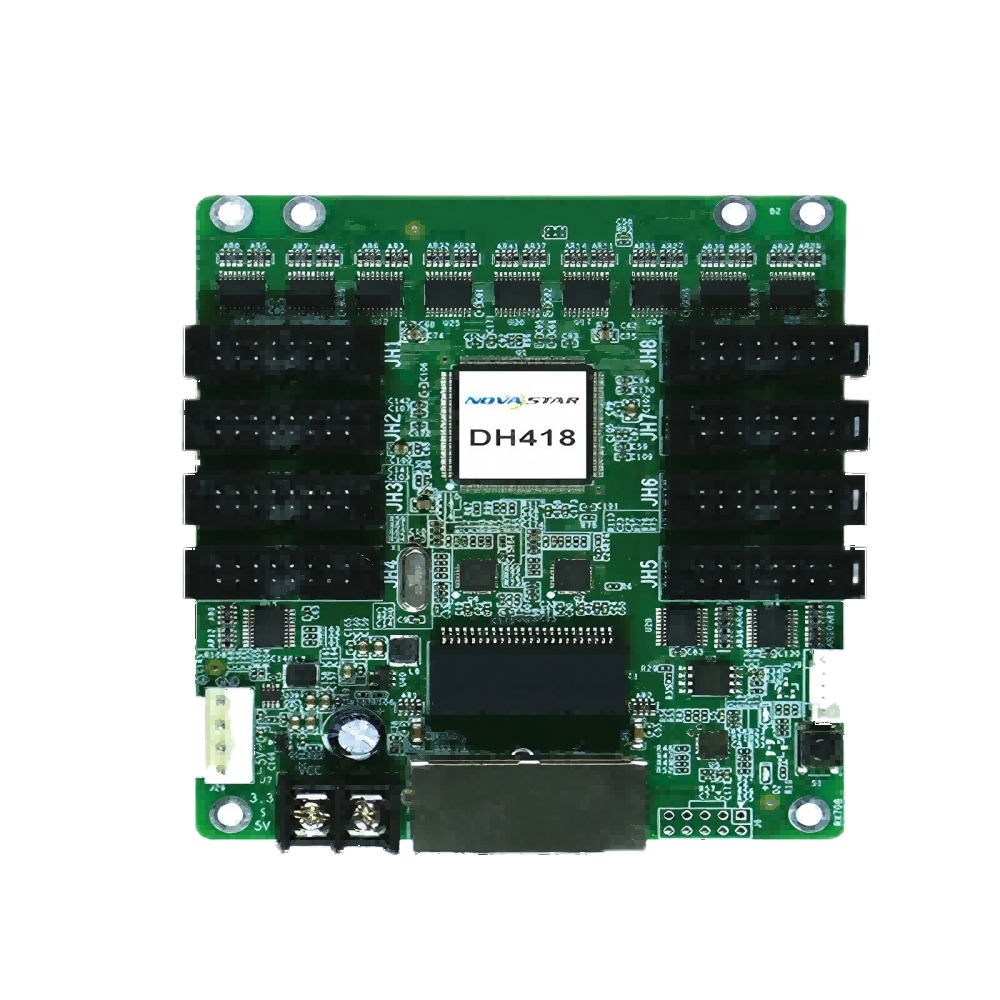

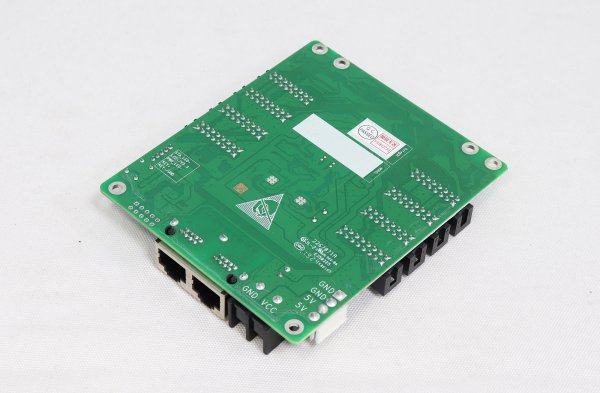

Novastar DH418 Receiving Card

The Novastar DH418 is a versatile and high-performance receiving card designed for LED display systems. With a maximum load of 256×256 pixels, it ensures exceptional image quality and stability.

Equipped with advanced display optimization features, the DH418 supports brightness correction, fast line adjustment, 3D functionality, and independent RGB gamma adjustment. These features significantly enhance display clarity, color accuracy, and viewing experience.

The DH418 is designed for seamless communication with 8 standard HUB75E interfaces, offering high stability and reliable performance. It supports up to 16 sets of RGB data, making it suitable for various application environments.

Key Features:

• High-Performance Display Processing

  • Supports 256×256 pixels for clear and vibrant visuals.

  • Brightness correction and fast line adjustment for image consistency.

  • RGB independent gamma adjustment enhances color accuracy.

  • 3D support for immersive display effects.

• Stable & Reliable Design

  • 8 standard HUB75E interfaces for efficient communication.

  • Supports up to 16 sets of RGB data for high-performance output.

  • Engineered for reliable operation in diverse environments.

• Optimized for Various Applications

  • EMC Class A compliance ensures improved electromagnetic compatibility.

  • RoHS certification guarantees environmental safety.

Specifications:

• Input Voltage: DC 3.3V–5.5V

• Constant Current: 0.5A

• Rated Power: 2.5W

• Operating Temperature: –20℃ to +70℃

• Humidity: 10% RH to 90% RH (non-condensing)

• Storage Temperature: –25℃ to +125℃

• Size: 95.5mm × 109mm × 18.4mm

• Weight: 72.5g

• Certifications: RoHS, EMC Class A

The Novastar DH418 is a robust and efficient receiving card, delivering superior display performance, enhanced stability, and reliable operation, making it an ideal solution for various LED display applications.
