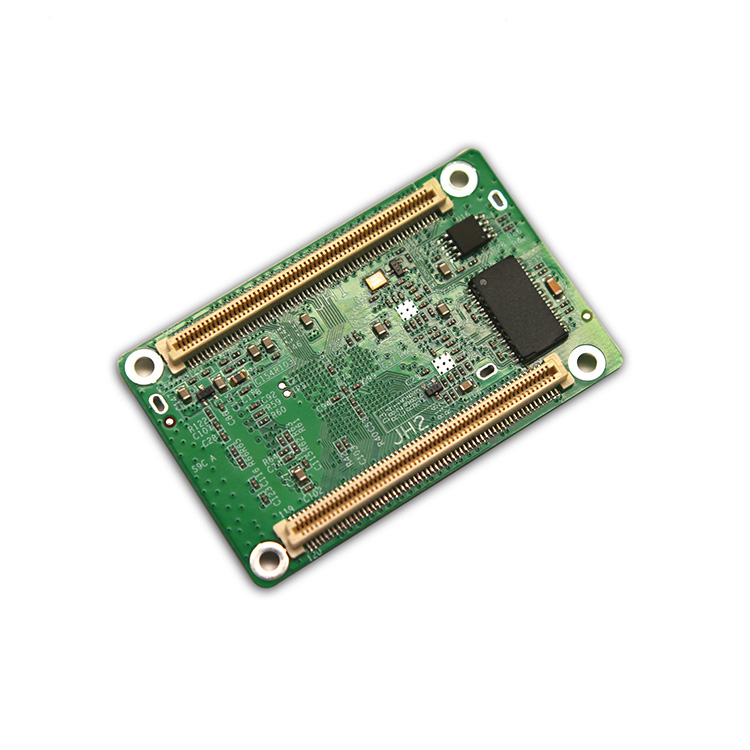

Novastar A5s Plus Receiving Card

The Novastar A5s Plus is a compact and versatile receiving card designed for high-performance LED displays. A single A5s Plus supports up to 512×384 pixels (requires NovaLCT V5.3.1 or later), delivering enhanced image quality and an optimized viewing experience.

With advanced display processing, the A5s Plus supports color management, 18Bit+ technology, pixel-level brightness and chroma calibration, individual Gamma adjustment for RGB, and 3D functionality. These features significantly improve color accuracy, contrast, and smoothness.

To ensure high stability and reliability, the A5s Plus utilizes high-density connectors, reducing the impact of dust and vibration. It supports up to 32 groups of parallel RGB data or 64 groups of serial data, expandable to 128 groups of serial data. Additionally, reserved pins allow for custom user functions, increasing its adaptability across various LED display applications.

Designed with EMC Class B compliance, the A5s Plus ensures improved electromagnetic compatibility, making it suitable for various on-site installations.

Key Features:

• High-Performance Image Processing

  • Supports 512×384 pixels for superior display quality.

  • 18Bit+ technology for enhanced color depth and smoother gradients.

  • Pixel-level brightness and chroma calibration for consistent image uniformity.

  • Individual Gamma adjustment for RGB to refine color accuracy.

  • 3D functionality for an immersive viewing experience.

• Reliable & Stable Design

  • High-density connectors reduce dust interference and vibration impact.

  • Supports 32 groups of parallel RGB data and 64 groups of serial data (expandable to 128 groups).

  • Customizable reserved pins for user-defined functions.

• Optimized for Various Installations

  • EMC Class B compliance ensures superior electromagnetic compatibility.

  • Suitable for diverse LED display environments.

Specifications:

• Maximum Loading: 512×384 pixels

• Input Voltage: DC 3.3V–5.5V

• Current: 0.6A

• Power Consumption: 3W

• Temperature Range: –20°C to +70°C

• Humidity: 10% RH to 90% RH (non-condensing)

• Size: 70.0 mm × 45.0 mm × 7.9 mm

• Net Weight: 16.2g

• Certifications: RoHS, EMC Class B

The Novastar A5s Plus is a powerful, feature-rich receiving card that delivers exceptional visual performance, enhanced stability, and flexible customization, making it an ideal solution for various LED display applications.
