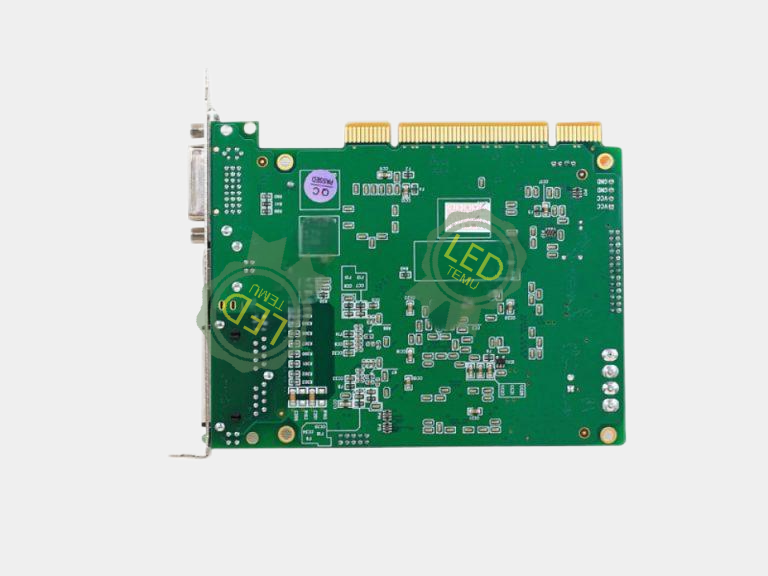

MoonCell VCMA7-V30 Sending Card

The MoonCell VCMA7-V30 sending card is a high-performance, feature-rich solution for managing large-scale LED display systems. With advanced capabilities such as intelligent network backup, hardware point correction, and ultra-long transmission distances, it is designed for the most demanding professional applications.

Key Features:

• ✅ Automatic Communication Monitoring:
  The system automatically detects new or replaced cards and updates the corresponding driver files, ensuring seamless integration and minimal downtime.

• ✅ Resolution and Loading Capacity:

  • Single Card Loading Area: Supports up to 1280×1024 points

  • Single Network Port Loading: Supports 1280×512 points

  • Maximum Resolution: 2048×1152

  • Dual Card Cascading Load: Supports 2048×1280 points when cascading two sending cards

• ✅ Advanced 10-Bit Color Support:
  The VCMA7-V30 supports 10-bit color, providing an incredible 1,073,741,824 colors—64 times more colors than a typical 8-bit system, allowing for more vibrant and detailed color reproduction.

• ✅ Intelligent Network Line Hot Backup:
  The system supports single or dual card hot backup with automatic failover. When a network issue arises, the backup cable automatically takes over within ≤ 0.1 seconds, ensuring continuous operation with maximum reliability.

• ✅ Point-by-Point Hardware Correction:

  • Brightness & Chromaticity Correction: Improves image quality with precise calibration.

  • Point-by-Point Detection: Works with constant current drivers to correct individual LED pixels, ensuring uniform display quality.

• ✅ Ultra-Long Transmission Distance:

  • Maximum transmission distance: 170 meters

  • Reliable transmission distance: 140 meters, ideal for large venues or outdoor displays

• ✅ Multi-Screen Sync & Combination:

  • Supports multi-screen configurations, enabling the control of multiple screens via a single sending card.

  • Screens can work independently or synchronize, and box modules can control different specifications.

• ✅ Compatibility:
  Fully compatible with the VCMA7-V10 sending card and previous models. Features improved functions, design, and user experience.

• ✅ DVI Backup and 3D Support:

  • DVI Double Backup: In case of signal failure, the system will automatically switch to another DVI and network signal.

  • 3D Support: Capable of displaying red-blue and red-green 3D stereo images with the required glasses.

• ✅ Additional Features:

  • Boot Screen Gradual Light-up: Reduces the electrical load on the LED screen by gradually lighting it up.

  • PWM Drive Chips: Supports MBI5024 and MBI5050 for stable and high-quality performance.

• ✅ Operating Conditions:

  • Operating Voltage: 3.5V to 6V

  • Operating Temperature Range: -20°C to +65°C

Package Contents:

• 1 x MoonCell V10 Sending Card

• 1 x DVI Cable

• 1 x USB Cable

(Software CD & Manual available upon request)

Ideal Applications:

• Large-scale LED display systems

• Outdoor and indoor digital signage

• Broadcast and event venues requiring high reliability and performance
