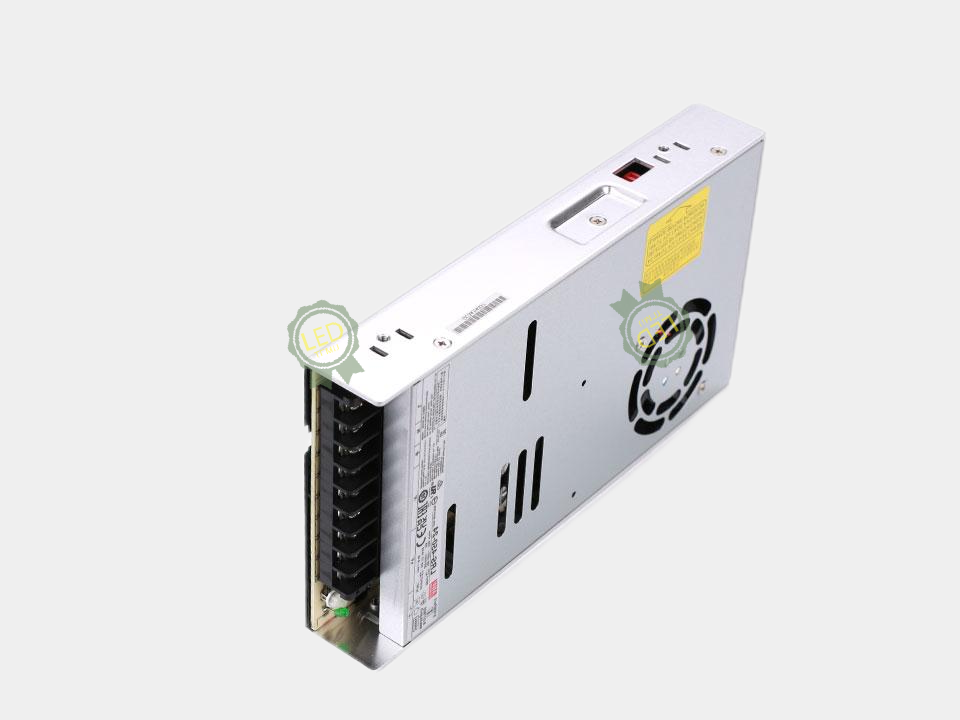

LRS-450-24 Industrial Power Supply Specifications
| Category | Parameter | Specification |
|---|---|---|
| Output | Voltage/Current | 24V DC / 18.8A (450W) |
| Regulation | ±1% | |
| Over Voltage Range | 27.6-32.4V | |
| Startup Time | 1500ms (115/230VAC) | |
| Rise Time | 50ms | |
| Input | Voltage Range | 90-132VAC/180-264VAC (switchable) 255-370VDC |
| Frequency | 47-63Hz | |
| Efficiency | 91% typical | |
| Cooling | Method | Forced air (smart fan control) |
| Protection | Circuit Protection | SCP/OLP/OVP/OTP |
| Surge Withstand | 300VAC for 5s | |
| Environmental | Operating Temperature | -20°C to +70°C |
| Humidity | 20-95% RH (non-condensing) | |
| Altitude | Up to 5000m | |
| Vibration | 5G withstand | |
| Physical | Dimensions | 225×124×35mm (1U) |
| Weight | 0.85kg | |
| Reliability | MTBF | >1,000,000 hours |
| Warranty | 3 years | |
| Certifications | Safety Approvals | UL/TUV/CE/CB/UKCA/KC/EAC/BIS/BSMI/CQC/DEKRA |
