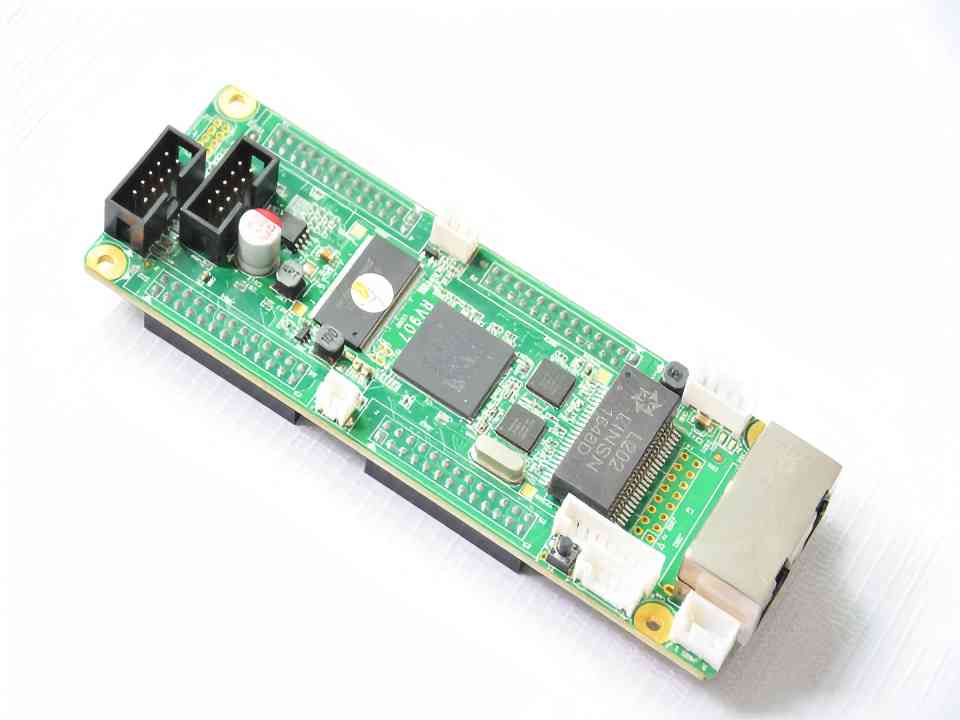

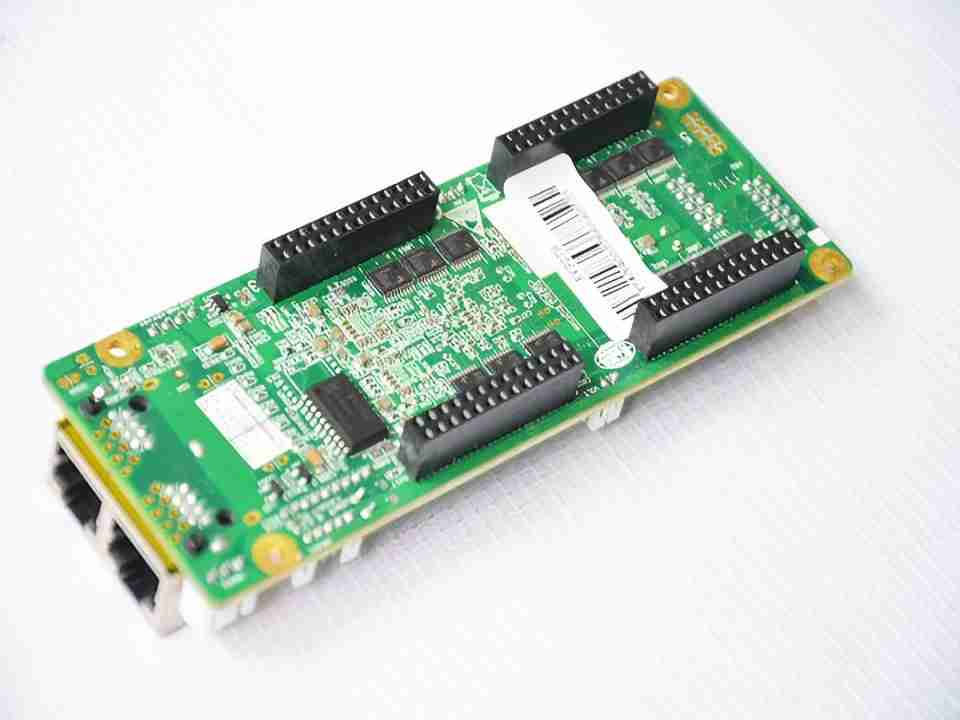

Linsn RV927 / RV927H Receiving Card

The Linsn RV927 / RV927H receiving card is a high-performance solution designed for advanced LED display systems, offering a wide range of features and monitoring capabilities to ensure optimal performance and reliability in various environments.

Key Features:

• Data Output Options

  • 16 sets of RGBR data output per single card.

  • 20 sets of RGB data output per single card.

  • 24 sets of RGB data output per single card.

  • 32 sets of serial data output per single card for improved flexibility.

• Resolution Support

  • Supports up to 1024 x 256 pixels, providing high-resolution output for detailed displays.

• Power and Monitoring Features

  • VCC foot on each port, allowing for direct power supply from the unit board, simplifying the setup process.

  • Temperature detection for continuous monitoring of the internal environment.

  • Box door switch detection ensures proper enclosure and security.

  • Two-way fan speed detection allows monitoring of cooling efficiency to prevent overheating.

  • Humidity detection (requires additional humidity module) helps avoid moisture-related issues.

  • Smoke detection (additional smoke sensing module required) for enhanced safety.

  • Three-way voltage detection monitors receiving card voltage and two external voltages.

• Color Calibration and Adjustment

  • Point-by-point brightness correction for consistent brightness across the entire display.

  • Single-card chroma space conversion for improved color accuracy.

• Network and Error Monitoring

  • Network line error testing ensures stable communication and helps with troubleshooting.

• High Performance and Redundancy

  • Hot backup of dual receiving cards ensures uninterrupted operation in case of card failure.

  • Supports high refresh rates (high brush) and high gray levels (high ash) for smooth and vibrant display performance, compatible with most chips.

• Compliance and Standards

  • Compliant with EU RoHS standards for environmental safety.

  • Compliant with EU CE-EMC Class B standards for electromagnetic compatibility.

The Linsn RV927 / RV927H receiving card offers a robust solution for high-resolution LED displays, with advanced monitoring features, powerful calibration capabilities, and reliable performance in demanding environments.
