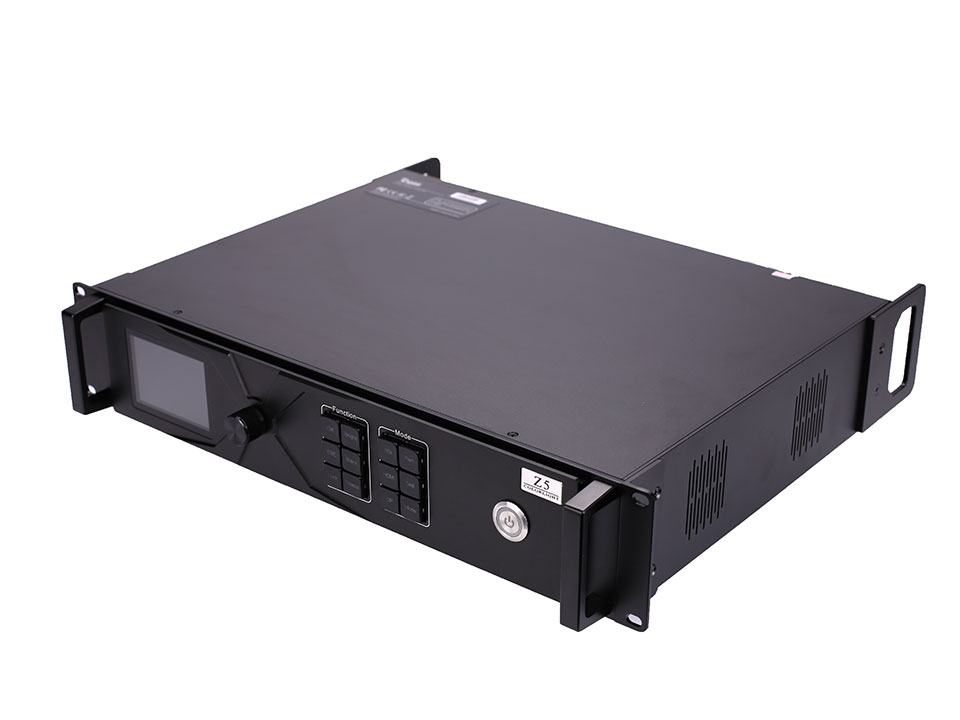

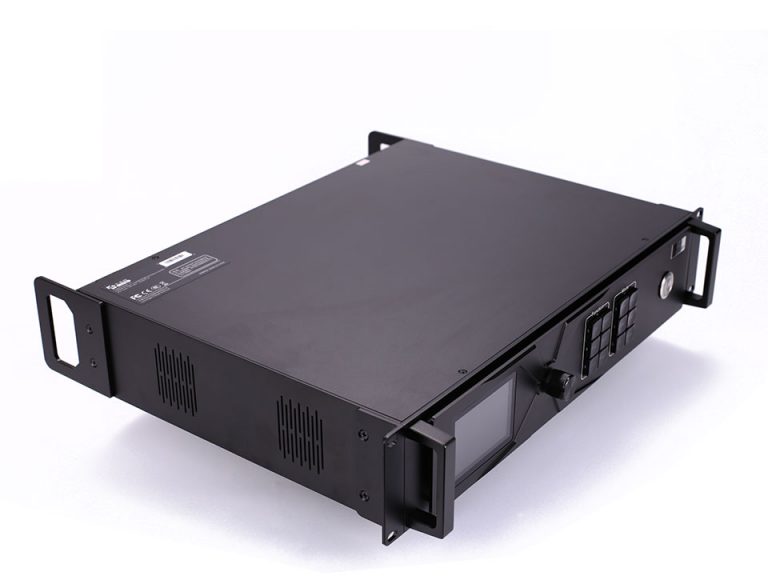

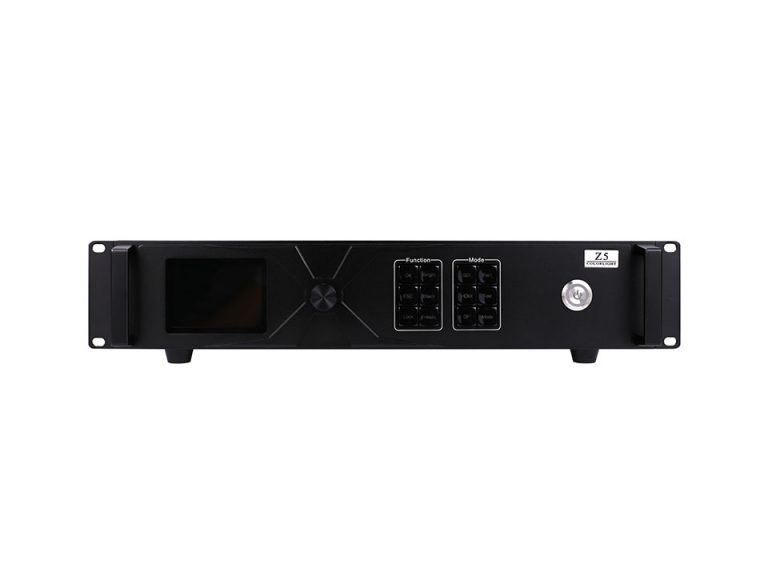

Colorlight Z5 Professional LED Video Controller

The Colorlight Z5 is a next-generation professional LED video controller designed to meet the ultra-low latency, HDR, and wide color gamut requirements of live events, broadcasts, television, film production, and other scenarios where real-time, low-latency processing and high color fidelity are essential. The Z5 offers outstanding visual performance and precise LED display control.

📡 Input Specifications:

✅ Full 4K input support with HDMI 2.0, DP 1.2, and 12G-SDI interfaces.
✅ Single port supports resolutions up to 4096×2160@60Hz.
✅ Supports 8-bit and 10-bit video signal inputs.
✅ Compatible with HDCP 1.4/HDCP 2.2.
✅ Supports input frame rates from 23.98Hz to 240Hz.

📡 Output Specifications:

✅ Maximum load capacity of 13.1 million pixels.
✅ Maximum width: 16,384 pixels; Maximum height: 8,192 pixels.

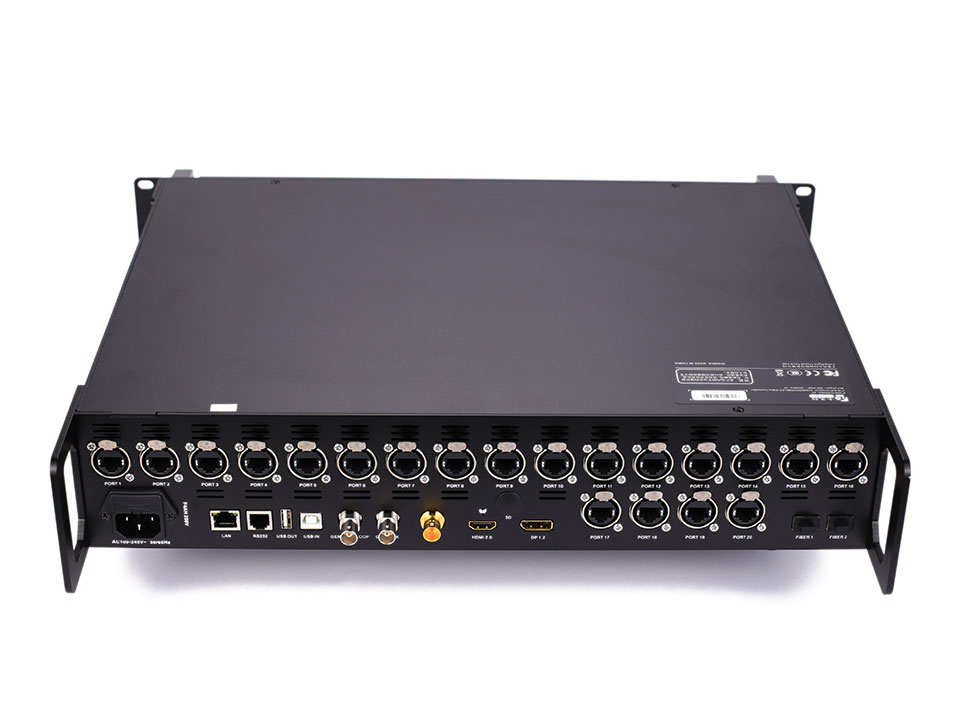

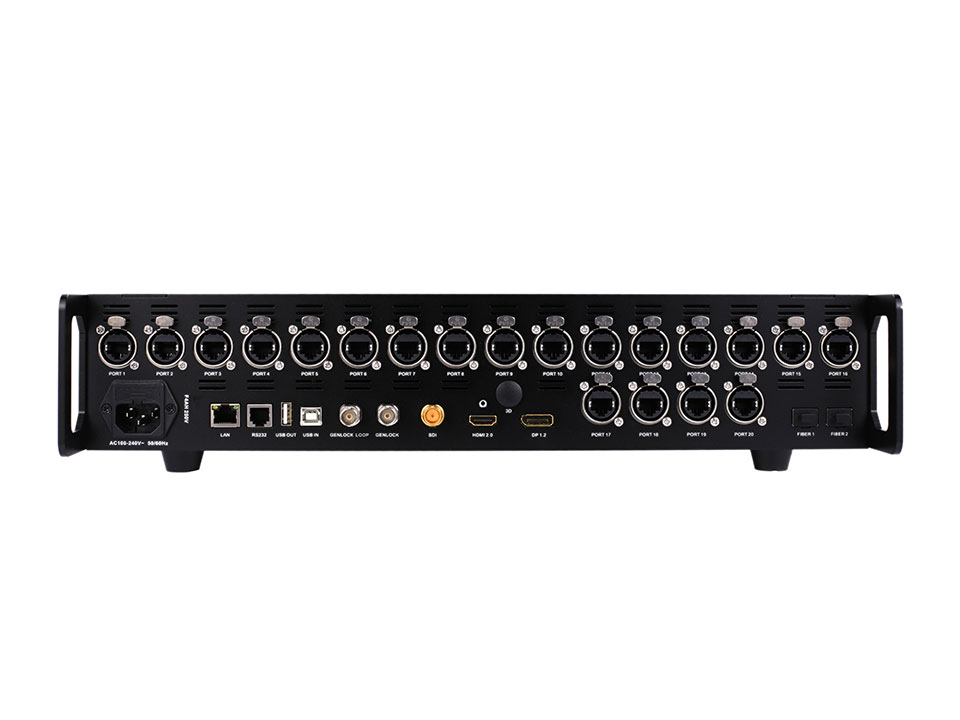

✅ 20-channel Gigabit Ethernet port output and 2-channel 10G fiber port output (selectable between the two types).
✅ Supports output frame rates from 23.98Hz to 240Hz.
✅ Ethernet port redundancy and controller redundancy are supported.

🎬 Video Processing Features:

✅ Video cropping, broadcast-level switching, and scaling.
✅ Up to 3-window display, supporting 1 channel of 4K and 2 channels of HD signal display.
✅ Ultra-low latency with a minimum delay of just one frame.
✅ Supports HDR10 and HLG display standards.
✅ Genlock function for perfect synchronization.

🎨 Color Adjustment Options:

✅ Fine-tuning for hue, saturation, contrast, and brightness compensation.
✅ Supports network port grouping for brightness adjustment.
✅ Color temperature adjustment with precision and independent RGB adjustment.

🕹️ Control Interfaces:

✅ USB port for control and cascading.
✅ RS232 port for communication.
✅ LAN port for TCP/IP control.

⚡️ Power and Dimensions:

✅ Power Supply: AC 100-240V, 50/60Hz.
✅ Size: 482mm × 407mm × 88mm.
✅ Weight: 5.9KG.

The Colorlight Z5 provides exceptional control, visual quality, and flexibility for high-end display environments, ensuring top-tier performance for any professional application.
