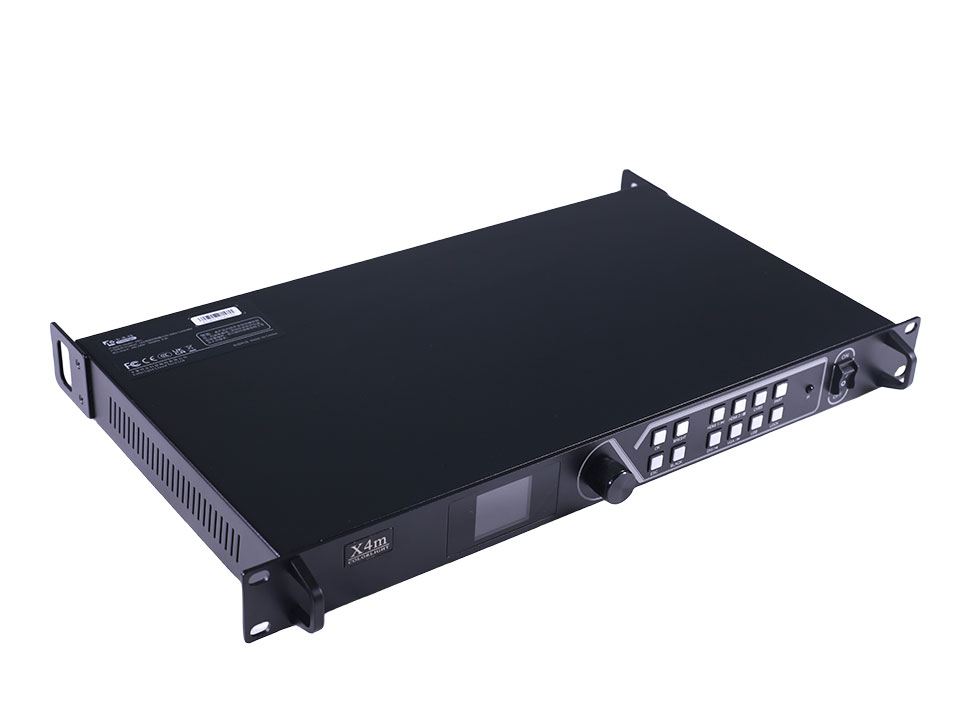

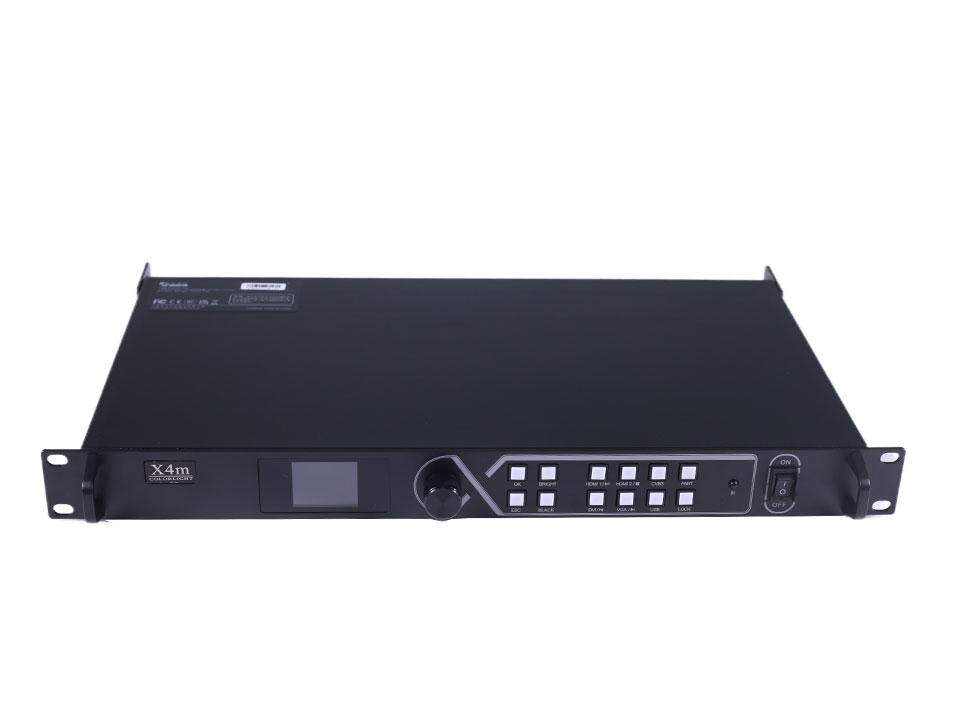

Colorlight X4M LED Video Controller

The Colorlight X4M LED Video Controller is the ideal solution for professionals seeking high-quality visuals and versatile control options. This powerful device supports a maximum resolution of 1920×1080@60Hz and offers multiple HD digital interfaces for seamless connectivity. It allows flexible zooming and clipping of video sources and supports 4 Gigabit Ethernet port outputs, with a maximum resolution of 3840 pixels in width and 2000 pixels in height.

The X4M also features USB flash drive playback, enabling digital media playback directly from a USB storage device. Packed with a range of practical features, this high-performance controller is perfect for small LED display applications, delivering reliability and superior performance.

📡 Input Specifications:

✅ Maximum resolution: 1920×1080@60Hz.

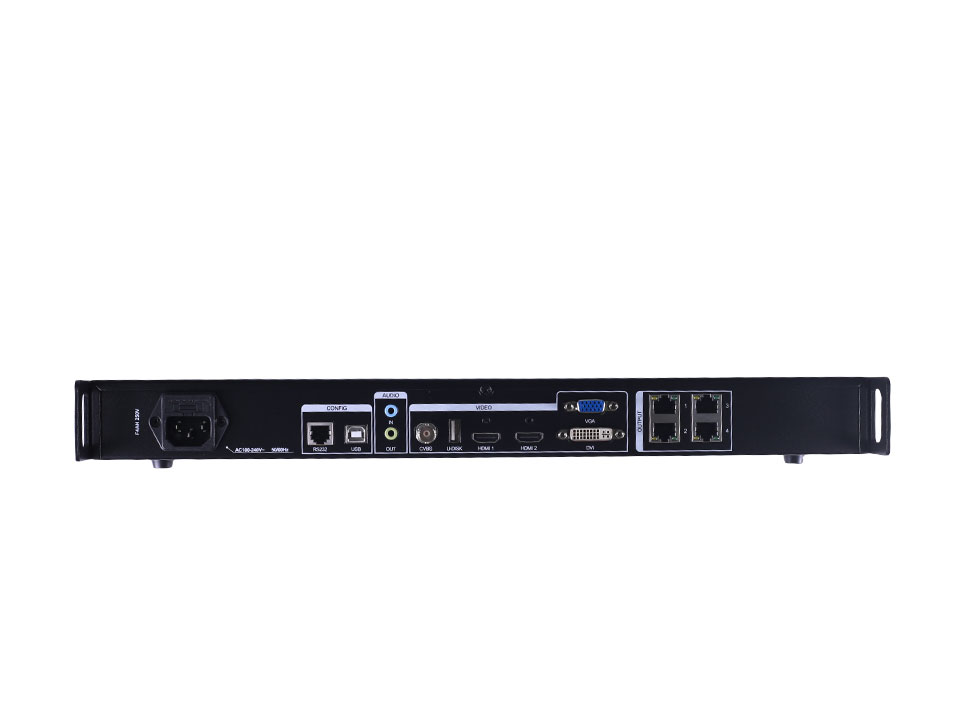

✅ Supported signal sources:

• 2× HDMI 1.4
• 1× DVI
• 1× VGA
• 1× CVBS
  ✅ USB Interface:
• 1× USB for U-disk playback.

📡 Output Specifications:

✅ Loading capacity: 2.6 million pixels.
✅ Maximum resolution:

• Maximum width: 3840 pixels
• Maximum height: 2000 pixels
  ✅ 4 Gigabit Ethernet output ports.
  ✅ Supports Ethernet port redundancy for secure connections.

🎧 Audio Interface:

✅ 1× 3.5mm audio input.
✅ 1× 3.5mm audio output, supports HDMI and DP audio output.

🎬 Functional Features:

✅ Video Flexibility: Supports switching, clipping, and zooming.
✅ Screen Offset & Adjustment: Enables screen offset and fine-tuning of contrast, saturation, chroma, brightness compensation, and sharpness.
✅ Color Space Conversion: Converts Limit Range to Full Range input color space.
✅ Screen Correction Factor: Supports sending and reading back screen correction data, with advanced stitching capabilities.
✅ HDCP Support: Compatible with HDCP 1.4.
✅ Precise Color Management: Ensures accurate color representation and management.
✅ Low Brightness Grayscale Optimization: Maintains complete grayscale display under low brightness conditions.
✅ Scene Presets: 16 scene parameter presets for easy recall.
✅ U-Disk Media Playback: Supports playback of pictures and videos directly from a U-disk.
✅ On-Screen Display (OSD): Supports OSD for U-disk playback and screen adjustment (optional remote control available).

🕹️ Control Interfaces:

✅ USB port for device control and cascading.
✅ RS232 protocol control.
✅ Optional infrared remote control for added convenience.

⚡️ Power and Dimensions:

✅ Power Supply: AC 100-240V, 50/60Hz.
✅ Size: Standard 1U Rack Mount.
✅ Weight: Lightweight and compact for easy installation.

The Colorlight X4M offers exceptional flexibility, reliability, and performance, making it the perfect choice for small LED display applications.
