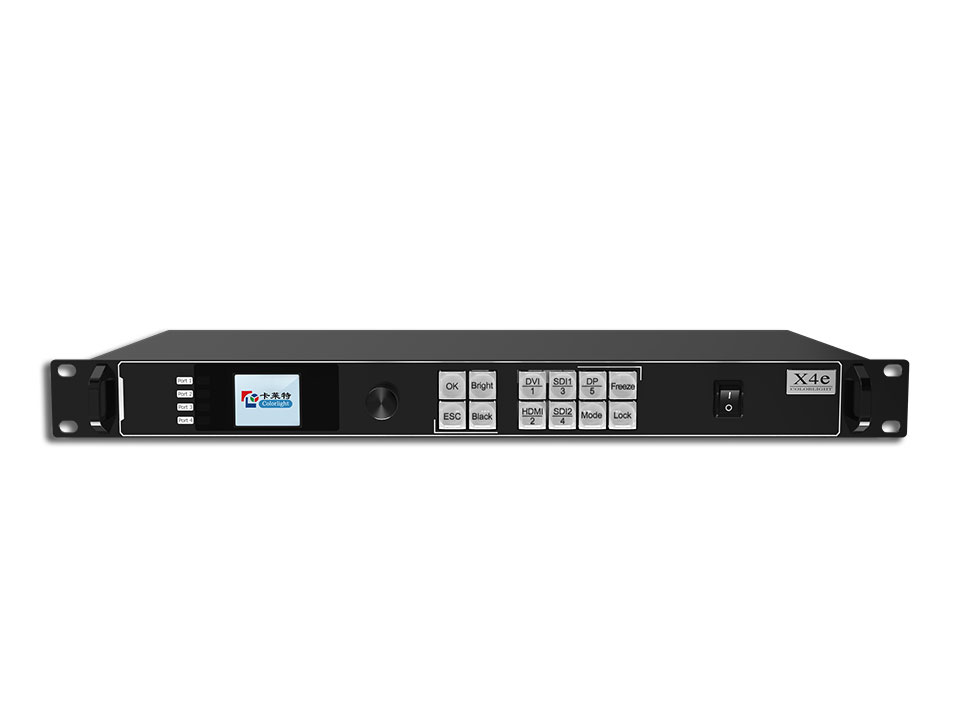

Colorlight X4e LED Controller

The Colorlight X4e is a professional LED display controller that delivers broadcast-quality visuals and exceptional video processing capabilities. Supporting seamless switching between SDI, HDMI, DVI, and DP connections, the X4e ensures smooth transitions between multiple digital inputs. With 4 Gigabit Ethernet outputs, it easily handles a maximum width and height of 4096 pixels, making it an ideal solution for high-performance LED displays.

📡 Input Specifications:

✅ Digital Signal Ports:

• 2× SDI
• 1× DP
• 1× HDMI (with loop)
• 1× DVI (with loop)

✅ Maximum Input Resolution: 1920×1200@60Hz

📡 Output Specifications:

✅ Loading Capacity: 2.6 million pixels
✅ Maximum Resolution:

• Up to 4096 pixels in width
• Up to 4096 pixels in height

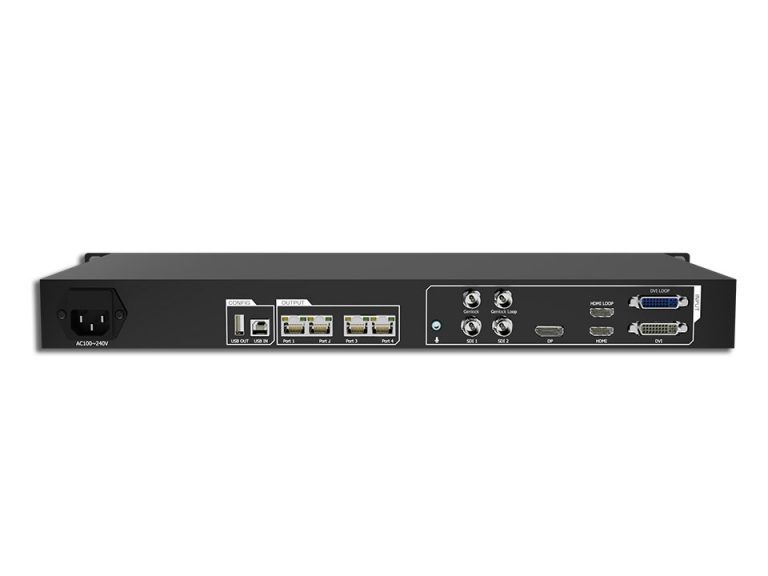

  ✅ Output Connectors:
• 4× Gigabit Ethernet ports

🎬 Functional Features:

✅ Video Source Management: Supports arbitrary switching and scaling of video sources
✅ Multi-Picture Display: Supports up to 3-picture display with freely adjustable location and size
✅ HDCP1.4 Compliance: Ensures secure and reliable content transmission
✅ Dual USB2.0 Ports: Provides high-speed configuration and easy cascading among controllers
✅ Brightness and Chromaticity Adjustment: Allows precise control over display settings
✅ Improved Grayscale at Low Brightness: Maintains superior grayscale performance in low-light conditions
✅ Full Compatibility: Compatible with all Colorlight receiving cards, multifunction cards, and optical fiber transceivers

📏 Physical Specifications:

✅ Size: W×H×L = 482.6mm × 88.0mm × 370.7mm
✅ Weight: 4.5KG

Colorlight X4e is the perfect solution for high-performance LED displays, offering reliable, seamless control and superior image quality.
