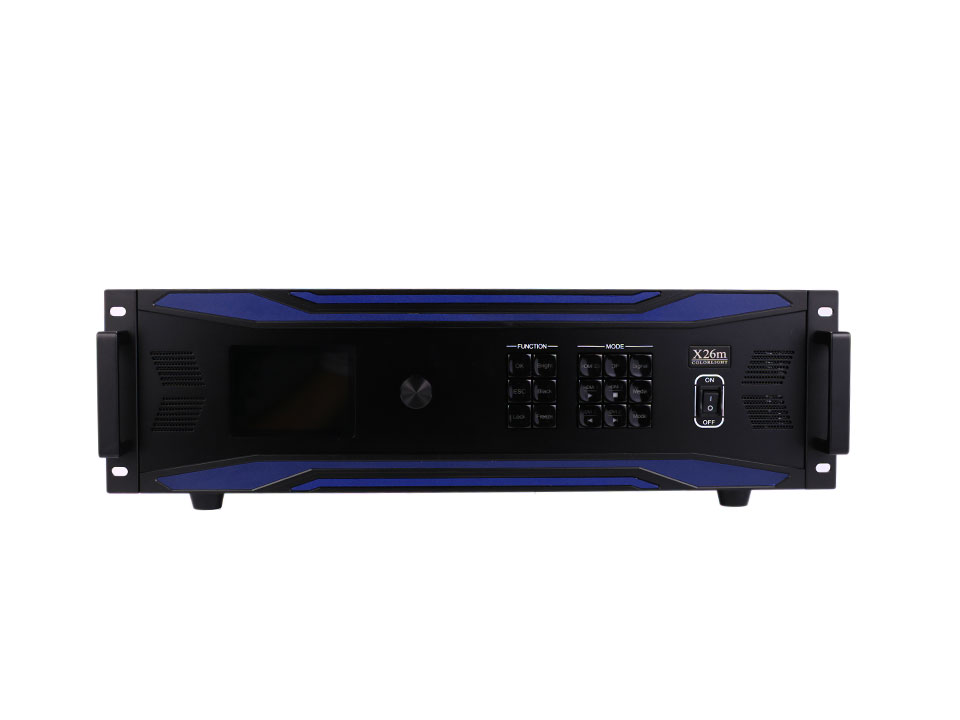

Colorlight X26m Professional LED Video Controller

The Colorlight X26m is a powerful and versatile LED video controller with 4K video input and advanced processing capabilities. It offers a massive loading capacity of 17 million pixels, with 26 Gigabit Ethernet ports or 3×10G optical fiber ports, providing flexible screen control and high-quality image performance.

📡 Input Specifications:

✅ Maximum resolution: 4096×2160@60Hz.
✅ 4K Input Interfaces:

• 1× DP 1.2
• 1× HDMI 2.0

✅ 2K Input Interfaces:

• 2× HDMI 1.4
• 2× DVI

✅ USB Interface:

• 1× USB 3.0 for U-disk playback.

📡 Output Specifications:

✅ Maximum loading capacity: 17 million pixels.
✅ 26 Gigabit Ethernet port outputs or 3×10 Gigabit optical port outputs (2 active and 2 standby).

🎧 Audio Interface:

✅ 1× 3.5mm audio input.
✅ 1× 3.5mm audio output, supports HDMI and DP audio output.

🎬 Functional Features:

✅ Multi-Window Display: Supports up to 6 windows, 1 layer per window.
✅ Window Flexibility: Freely move and resize windows, minimum size 64×64.
✅ Seamless Switching & Cropping: Allows seamless window switching and cropping with minimum size 64×64.
✅ Precision Color Management: Supports precise color gamut adjustment with specific receiving cards.
✅ Frame Locking: Internal synchronization, input signal frame locking, and automatic phase locking per layer.
✅ Brightness and Color Temperature Control: Supports fine-tuned adjustments for optimal display.
✅ 3D Display: Optional 3D support (accessories sold separately).
✅ Low-Brightness Grayscale Enhancement: Improves grayscale performance at low brightness.
✅ Scene Management: Save and recall up to 128 scene parameters.
✅ U-Disk Playback: Upgrade programs and play photos and videos directly from U-disk.
✅ OSD Functionality: Optional OSD to play videos, display images, and adjust screen display.

🕹️ Control Interfaces:

✅ USB port for control and cascading.
✅ RS232 protocol support.
✅ LAN port for TCP/IP control.
✅ Android APP control via phones and tablets.

⚡️ Power and Dimensions:

✅ Size: 482.6mm × 103.0mm × 415.0mm.
✅ Weight: 9KG.

The Colorlight X26m ensures superior image control, seamless operation, and top-notch performance, making it ideal for high-end LED display applications.
