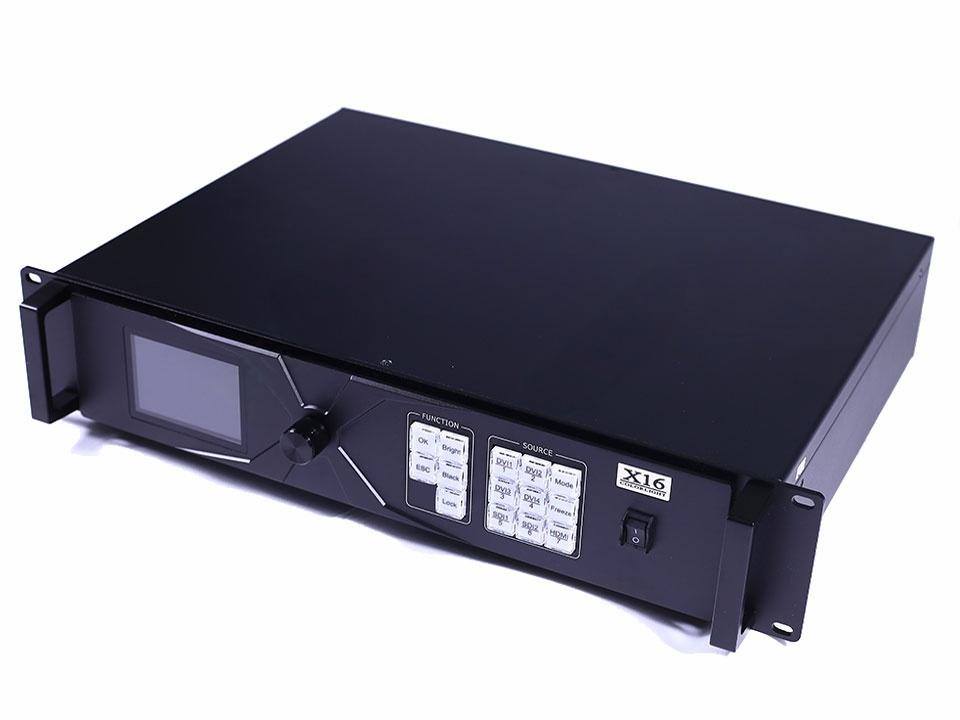

Colorlight X16 Professional LED Controller

The Colorlight X16 is a high-performance LED screen controller, offering exceptional video signal reception, splicing, and processing capabilities. It supports multiple signal inputs with a maximum resolution of 4096×2160 pixels and seamless switching between HDMI, DVI, and SDI signals. The X16 also supports splicing, broadcast-quality scaling, and up to 7 PIPs (Picture-in-Picture) for flexible content arrangement.

With 16 Gigabit Ethernet outputs, the X16 can handle large LED screens with a maximum width of 8192 pixels and a maximum height of 4096 pixels. Additionally, it is equipped with versatile features that provide flexible screen control and ensure high-quality image displays, making it ideal for high-end rental displays and high-resolution LED screen applications.

🎬 Key Features:

✅ Multiple Input Options:

• Supports 1×HDMI 2.0, 4×DVI, and 2×SDI digital signal inputs.

✅ High Resolution Support:

• Handles input resolutions up to 4096×2160@60Hz with seamless switching.

✅ Large Loading Capacity:

• Supports a loading capacity of 8.88 million pixels, with a maximum width of 8192 pixels and a maximum height of 4096 pixels.

✅ Flexible Video Processing:

• Enables arbitrary switching, splicing, and scaling of video sources based on screen resolution.

✅ 7 PIP (Picture-in-Picture) Support:

• Allows up to 7 picture displays with freely adjustable size and position.

✅ HDCP 2.2 Compliant:

• Ensures content protection with HDCP 2.2 support.

✅ High-Speed Configuration & Cascading:

• Equipped with dual USB 2.0 ports for quick configuration and easy controller cascading.

✅ Enhanced Gray-Scale at Low Brightness:

• Delivers superior gray-scale performance, ensuring excellent image quality even at low brightness.

✅ Flexible Brightness and Chromaticity Control:

• Allows precise control over brightness and chromaticity settings.

✅ Wide Compatibility:

• Fully compatible with all Colorlight receiving cards, multifunction cards, and optical fiber converters.

📏 Technical Specifications:

• Input Ports: 1×HDMI 2.0, 4×DVI, 2×SDI
• Input Resolution: Up to 4096×2160@60Hz
• Loading Capacity: 8.88 million pixels
• Max Width/Height: 8192 pixels (width) / 4096 pixels (height)
• Output Ports: 16×Gigabit Ethernet ports
• PIP Support: Up to 7 picture-in-picture displays
• HDCP Version: 2.2
• USB Ports: Dual USB 2.0 for fast configuration and cascading
• Compatibility: Supports all Colorlight receiving and multifunction cards, and optical fiber converters

Colorlight X16 is the ultimate solution for high-performance, high-resolution LED displays, providing exceptional signal processing and unmatched display quality.
