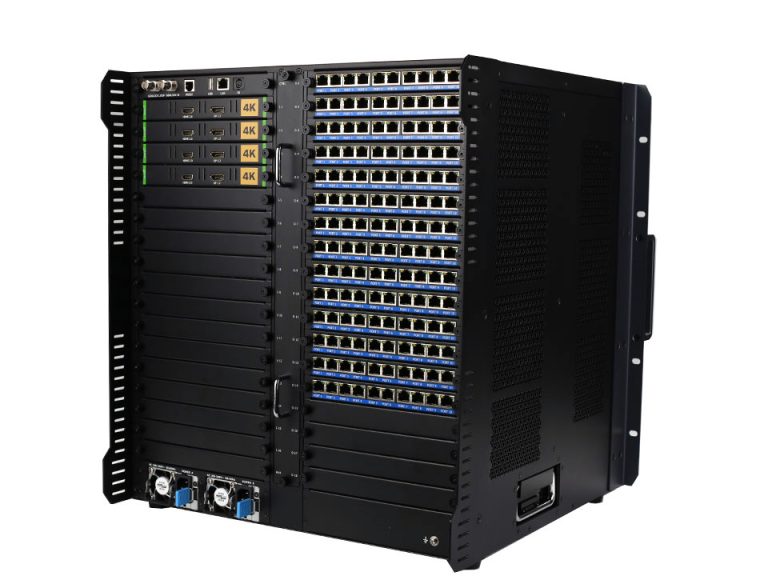

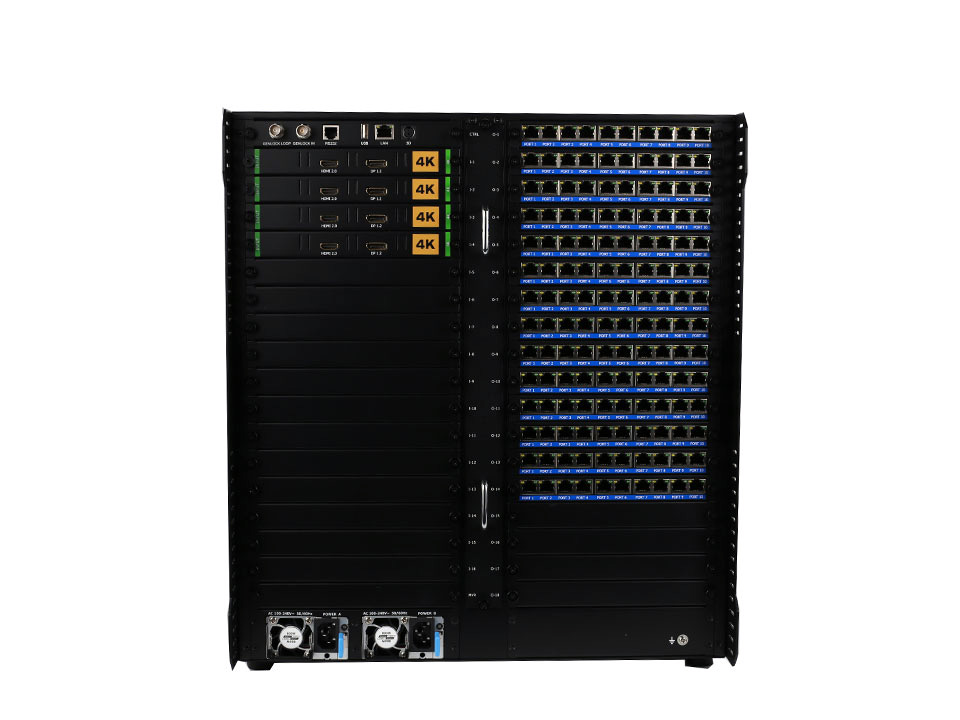

The X100 Pro-11U is Colorlight’s latest professional video splicer, engineered specifically for large-screen splicing applications. This high-performance device integrates multiple video processing functions, including cropping, scaling, splicing, and multi-screen display. It can serve as both a video processor for LCD and DLP splicing screens or as an LED controller for ultra-high-resolution fine-pitch LED video walls.

Input Specifications:

✅ 10 types of input boards available for flexible configuration:

• 1×HDMI 2.0: Supports up to 4096×2160@60Hz input on a single channel.
• 1×DP 1.2: Supports up to 4096×2160@60Hz input on a single channel.
• 1×12G-SDI: Supports up to 4096×2160@60Hz input on a single channel.
• 1×HDMI 2.0 + 1×DP 1.2 (either/or): Supports up to 4096×2160@60Hz input on a single channel.
• 4×DVI: Supports up to 1920×1200@60Hz input on a single channel.
• 4×HDMI 1.4: Supports up to 1920×1200@60Hz input on a single channel.
• 4×VGA: Supports up to 1920×1080@60Hz input on a single channel.
• 2×VGA + 2×CVBS: VGA supports up to 1920×1080@60Hz input on a single channel; CVBS supports PAL/NTSC standard video input.
• 4×3G-SDI: Supports up to 1920×1080@60Hz input on a single channel.
• 2×RJ45 GbE ports for V_IPX2, supports H.264 decoding.

➡️ Maximum number of input boards: 16

Output Specifications:

✅ 6 types of output boards available for flexible configuration:

• 4×HDMI 1.4: Supports up to 1920×1200@60Hz output on a single channel.
• 4×DVI: Supports up to 1920×1200@60Hz output on a single channel.
• 1×HDMI 2.0: Supports up to 4096×2160@60Hz output on a single channel.
• 10×GbE ports: Maximum load capacity of 6.55 million pixels.
• 2 channels of 5G Ethernet ports: (1 board has 4×5G network ports, with 2 main ports and 2 backup ports) maximum load capacity of 5.89 million pixels.
• 1 channel of 10G fiber ports: (1 board has 2×10G fiber ports, with 1 main port and 1 backup port) maximum load capacity of 6.55 million pixels.

➡️ Preview and Monitoring:

• 1×HDMI 1.4 port: Supports previewing inputs and real-time output monitoring, fixed at 1920×1080@60Hz.
• Supports web-based software for input preview and real-time output monitoring.

Layer Limitations:

✅ Maximum layers: 92×1080P or 23×4K.
✅ For OUT1OUT3, OUT4OUT6, OUT7OUT9, OUT10OUT12, OUT13~OUT15:

• Maximum 16×1080P or 4×4K per screen group.
  ✅ For OUT16~OUT18:
• Maximum 12×1080P or 3×4K per screen group.

Output Board Specifications:

✅ Maximum number of output boards: 18
✅ Maximum video outputs: 72
✅ Maximum GbE output ports: 180×GbE ports, with a maximum load capacity of 117.96 million pixels.
✅ Maximum 5G Ethernet ports: 36 main and 36 backup 5G Ethernet ports, with a maximum load capacity of 106.02 million pixels.
✅ Maximum fiber output ports: 18 main and 18 backup 10G fiber ports, with a maximum load capacity of 117.96 million pixels.

Device Limitations:

⚡ Load capacity per device: 32,767 pixels (maximum width/height).
⚡ Load capacity per layer: 32,767 pixels (maximum width/height).
⚡ 2K and 4K video output boards cannot be used together for the same screen.

Physical Specifications:

📏 Size: 483.0mm × 488mm × 475.2mm
⚖️ Weight: 38KG

The X100 Pro-11U delivers exceptional performance, advanced splicing capabilities, and unmatched flexibility, making it the perfect solution for large-scale splicing and fine-pitch LED video walls.
