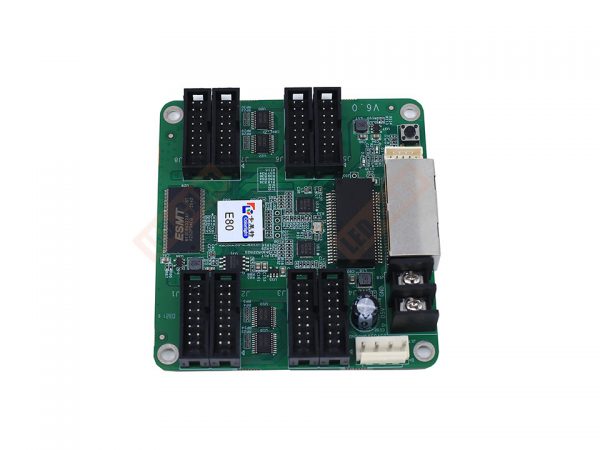

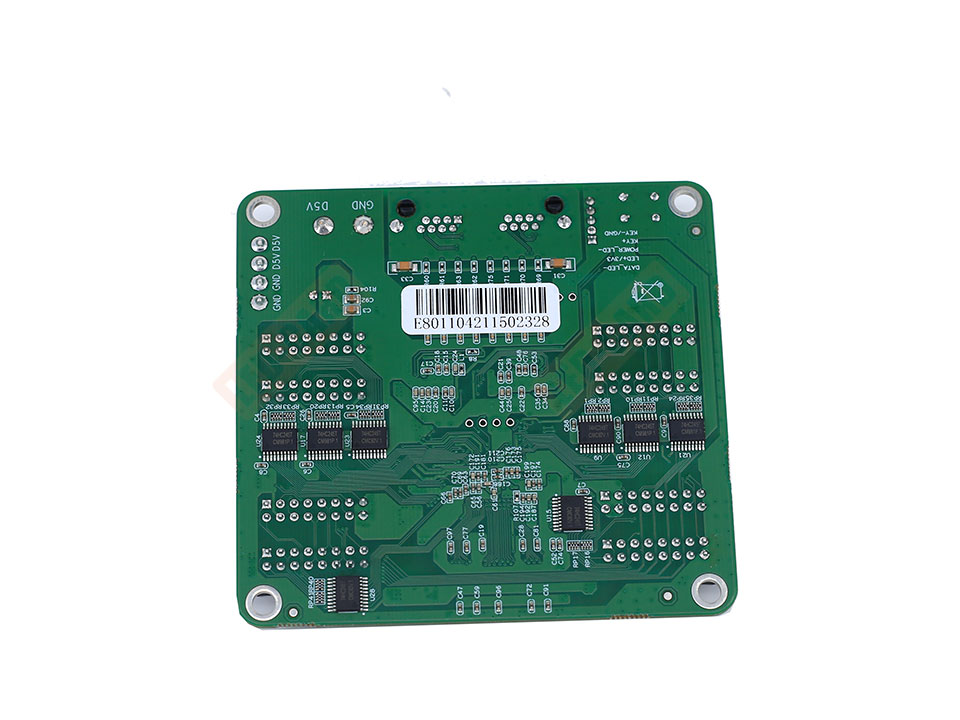

Carlette E80 Receiving Card

The Carlette E80 receiving card is a cost-effective solution designed to help customers reduce costs while maintaining high display quality and reliability. By integrating the widely used hub75 adapter board directly into the receiving card, the E80 minimizes failure points and reduces the likelihood of issues, ensuring a more stable and worry-free operation for your LED displays.

Key Features:

• Affordable and Reliable Performance:

  • Offers a cost-effective solution without compromising on the quality of the display, making it ideal for budget-conscious projects.

• Integrated Hub75 Adapter:

  • The hub75E adapter is integrated into the card, streamlining the design and enhancing reliability.

• High-Quality Display:

  • Supports up to 16 sets of RGB data, ensuring vibrant and clear image reproduction.
  • Provides stable performance with 8 standard hub75E interfaces for seamless operation.

• Pixel Capacity:

  • Supports a maximum of 512×128 pixels per card, providing sufficient resolution for medium-sized LED displays.

Specifications:

• Input Voltage: DC 3.8V – 5.5V
• Constant Current: 0.6A
• Rated Power: 3W
• Operating Temperature: -25℃ to +75℃
• Humidity Range: 10% RH – 90% RH (non-condensing)
• Storage Temperature: -40℃ to +125℃
• Size: 81.7mm x 145.7mm x 21mm
• Weight: 58g

The Carlette E80 receiving card is an excellent choice for those seeking an affordable, reliable, and high-performance solution for their LED displays. Its compact design, enhanced stability, and cost-saving benefits make it a smart choice for a variety of display applications.
