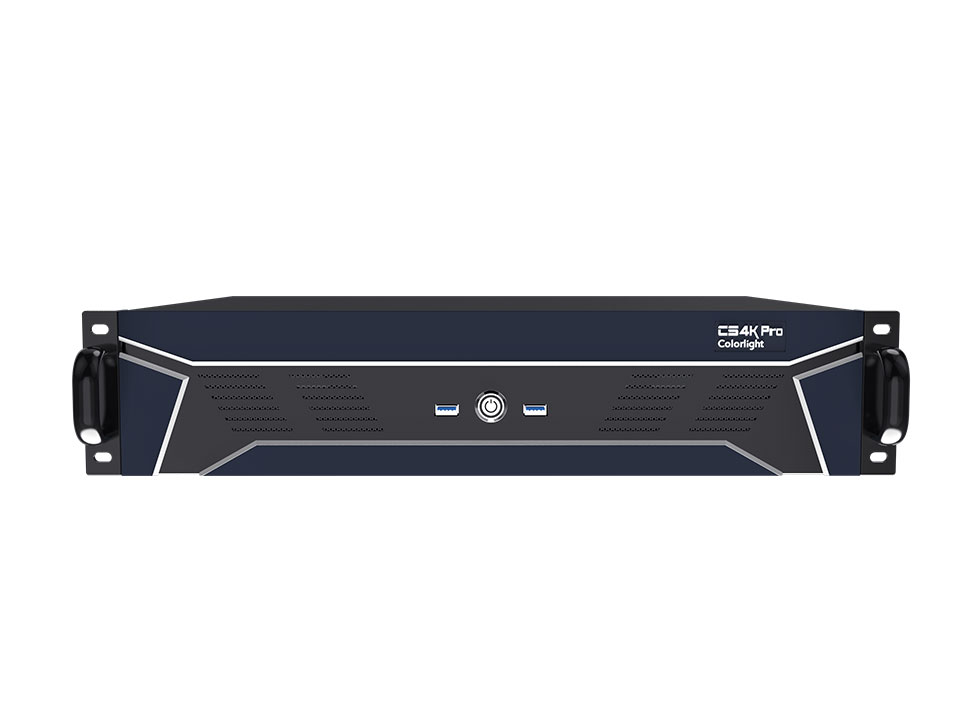

Colorlight CS4K Pro Multimedia Server

The Colorlight CS4K Pro is a high-performance multimedia server designed to meet demanding video playback and control requirements, capable of outputting two 4K@60Hz video signals. Engineered with top-tier hardware, this reliable and efficient system excels in high-volume applications.

Equipped with GrandShow professional video playback and control software, it supports the simultaneous decoding and playback of various formats, along with seamless transitions between multiple scenes. The CS4K Pro also offers extensive splitting options, ranging from standard to irregular screen splits, making it an ideal choice for large-scale video playback and control systems.

🎬 Key Features:

✅ Ultra-High Resolution Output:

• 2×Mini DisplayPort 1.4 outputs, supporting up to 8192×2304@60Hz resolution
• Pixel-to-pixel display for ultra-long screen applications

✅ Flexible Content Playback:

• Supports videos, images, PPTs, text, and various multimedia formats
• Real-time content preview and output monitoring

✅ Advanced Scene Control:

• Scene editing, previewing, switching, saving, and copying
• Supports seamless scene transitions and background image displays
• Supports time-limited authorization and automatic scene touring

✅ Comprehensive Signal Splitting and Reorganization:

• Flexible splitting styles for ultra-long screen displays
• Supports image rotation at any angle and color adjustments

✅ External Signal Integration:

• Capture external signals from NDI and video capture cards (optional)
• Supports HDR video decoding and playback

✅ Professional Control Options:

• Supports MIDI console for external shortcut control
• Visualized operations with scene switching and image monitoring via Pad APP
• Supports protocols from Integrated Control Host for seamless scene and volume management

📏 Technical Specifications:

✅ Type: CS4K Pro
✅ Chassis: 2U
✅ Operation Interface Port: 1×HDMI 1.4 / 1×DVI (up to 3840×2304@30Hz resolution)
✅ Operating System: Windows 10 Professional
✅ CPU: Intel 6 cores, 12 threads
✅ RAM: 16GB
✅ Storage: 500GB M.2 high-speed SSD
✅ Optional Video Capture Card: SDI, DVI ports
✅ Graphics Card: Quadro Professional Graphics
✅ Video Output: 2×Mini DisplayPort 1.4
✅ Audio: 3.5mm input and multichannel output
✅ Network Bandwidth: 1000M
✅ Software: GrandShow
✅ Operating Environment:

• Temperature: 0℃45℃ (32°F113°F)
• Humidity: 10%RH~80%RH (non-condensing)

✅ Storage Environment:

• Temperature: 0℃50℃ (32°F122°F)
• Humidity: 10%RH~90%RH (non-condensing)

✅ Power Supply:

• AC 100-240V, 50/60Hz
• Rated Power: 165W

✅ Physical Specifications:

• Dimensions (W×H×D): 482.6mm × 98.0mm × 391.7mm
• Net Weight: 7.14kg / 15.74lbs

The Colorlight CS4K Pro is a powerful, feature-rich multimedia server that delivers superior performance, making it the perfect solution for large-scale, high-definition video playback and control applications.
